Technical Content
Part Image

ADE7751ARSZRL - Analog Devices

Description: Data Acquisition ADCs/DACs - Specialised roduct to Frequency Converter I.C.

Download ADE7751ARSZRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

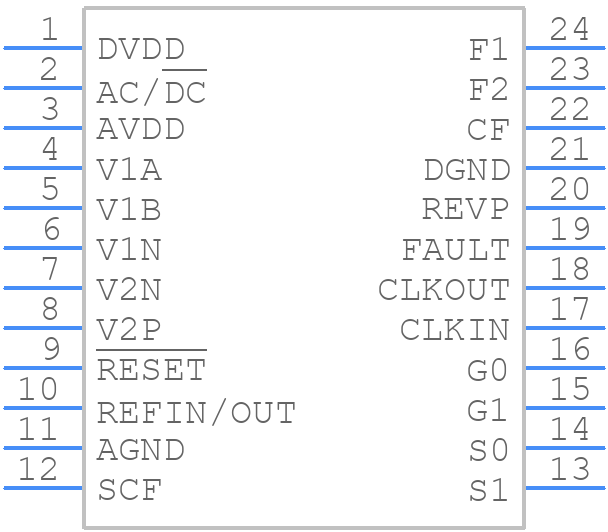

Symbol
ADE7751ARSZRL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADE7751ARSZRL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RS-24)
click to zoom
3D Models
ADE7751ARSZRL - Analog Devices - 3D model - Small Outline Packages - (RS-24)
click to zoom

ADE7751ARSZRL Details

  • Manufacturer Part Number:

    ADE7751ARSZRL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RS-24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    8.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

ADE7751ARSZRL Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the ADE7751ARSZRL involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the current sensor. Additionally, the layout should minimize noise coupling and ensure good thermal dissipation.
  • Calibration of the ADE7751ARSZRL involves adjusting the gain and offset of the device to match the specific current sensor and system requirements. This can be done using the device's calibration registers and by following the calibration procedure outlined in the datasheet.
  • The maximum frequency of the pulse output of the ADE7751ARSZRL is 100 kHz. However, the actual frequency may be limited by the system's clock frequency and the device's configuration.
  • Yes, the ADE7751ARSZRL can be used for polyphase energy measurement by using multiple devices, one for each phase, and summing the energy measurements from each phase.
  • The ADE7751ARSZRL uses a proprietary algorithm to accurately measure energy in the presence of harmonic distortion. The device can handle up to 10% total harmonic distortion (THD) in the current waveform.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADE7751ARSZRL Overview

Use the download button to access the ADE7751ARSZRL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADE77, or try a keyword search, such as Other Analog ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
