ADE7753ARSRL - Analog Devices

Description: IC ENERGY METERING DETEC 20-SSOP

Download ADE7753ARSRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

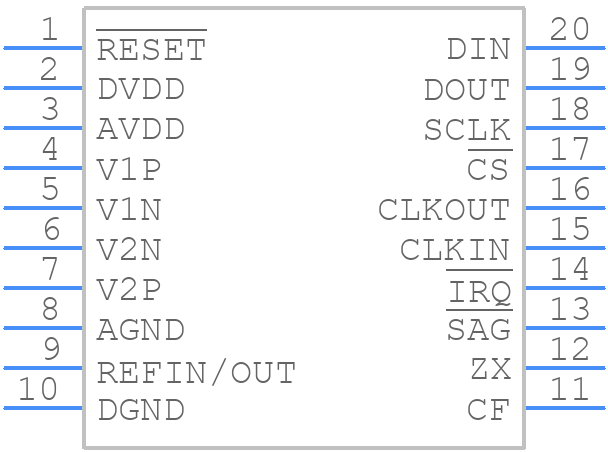

ADE7753ARSRL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADE7753ARSRL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-20 (SSOP)
click to zoom
3D Models
ADE7753ARSRL - Analog Devices - 3D model - Small Outline Packages - RS-20 (SSOP)
click to zoom

ADE7753ARSRL Details

  • Manufacturer Part Number:

    ADE7753ARSRL

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    MO-150AE, SSOP-20

  • Pin Count:

    20

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e0

  • Length:

    7.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

ADE7753ARSRL Frequently Asked Questions (FAQs)

  • The ADE7753ARSRL is a high-frequency device, and proper layout and placement are crucial for optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connected to the high-frequency pins.
  • The ADE7753ARSRL requires calibration to ensure accurate energy measurement. The calibration process involves setting the gain and offset registers to compensate for the gain and offset errors of the device. The calibration procedure is described in the datasheet, and it is recommended to follow the step-by-step process to achieve accurate results.
  • The ADE7753ARSRL can handle voltage and current inputs up to 1 kHz. However, the device is optimized for 50/60 Hz applications, and the accuracy of the energy measurement may degrade at higher frequencies.
  • Yes, the ADE7753ARSRL can measure energy in both directions, making it suitable for applications such as grid-tie inverters and energy storage systems. The device can detect the direction of energy flow and provide separate measurements for import and export energy.
  • The ADE7753ARSRL uses a proprietary algorithm to accurately measure energy in the presence of harmonics and distortion. However, it is recommended to use a high-quality voltage and current sensor with a high signal-to-noise ratio to minimize the effects of noise and distortion on the measurement accuracy.
