ADE7753ARSZRL - Analog Devices

Description: Analog Devices ADE7753ARSZRL Energy Meter IC, 16 bit, 20-Pin SSOP

Download ADE7753ARSZRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

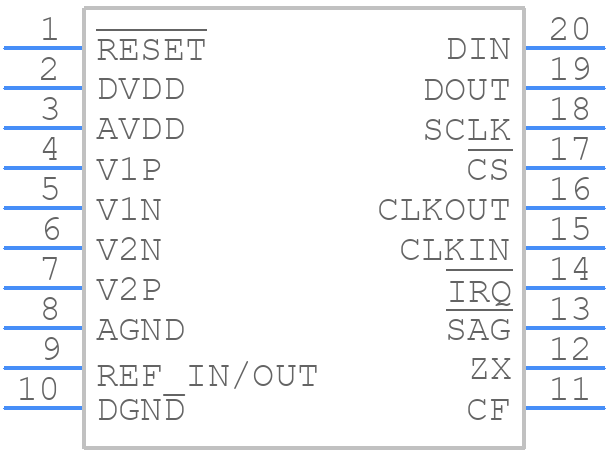

ADE7753ARSZRL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADE7753ARSZRL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-20 (SSOP)
click to zoom
3D Models
ADE7753ARSZRL - Analog Devices - 3D model - Small Outline Packages - RS-20 (SSOP)
click to zoom

ADE7753ARSZRL Details

  • Manufacturer Part Number:

    ADE7753ARSZRL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RS-20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

ADE7753ARSZRL Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the ADE7753ARSZRL involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the current sensor. Additionally, the device should be placed away from high-frequency noise sources and heat sources.
  • Calibration of the ADE7753ARSZRL involves adjusting the gain and offset of the device to match the specific current sensor and system requirements. This can be done using the device's built-in calibration registers and by following the calibration procedure outlined in the datasheet.
  • The maximum frequency of the current sensor that can be used with the ADE7753ARSZRL is typically in the range of 100 kHz to 200 kHz, depending on the specific application and system requirements. However, it's recommended to consult the datasheet and application notes for specific guidance.
  • To ensure EMC with the ADE7753ARSZRL, it's recommended to follow proper PCB design and layout practices, use shielding and filtering, and ensure that the device is properly grounded and decoupled. Additionally, the device should be placed in a metal enclosure and the system should be designed to meet the relevant EMC standards.
  • The typical power consumption of the ADE7753ARSZRL is around 25 mW, depending on the specific application and system requirements. However, this can vary depending on the clock frequency, voltage supply, and other factors.
