ADE7754ARZ - Analog Devices

Description: ADE7754ARZ, Energy Measurement, 24-Pin SOIC W

Download ADE7754ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

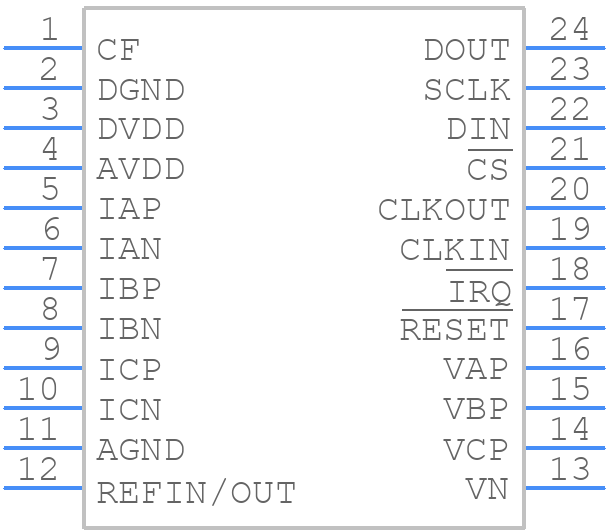

ADE7754ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADE7754ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SOIC_24(RW-24)
click to zoom
3D Models
ADE7754ARZ - Analog Devices - 3D model - Small Outline Packages - SOIC_24(RW-24)
click to zoom

ADE7754ARZ Details

  • Manufacturer Part Number:

    ADE7754ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    MS-013AD, SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RW-24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    IT ALSO REQUIRES A 4.75V TO 5.25V DIGITAL SUPPLY

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADE7754ARZ Frequently Asked Questions (FAQs)

  • The ADE7754ARZ is a high-frequency device, so it's essential to follow good layout practices to minimize noise and ensure accurate measurements. Place the device close to the current sensor, use a solid ground plane, and keep analog and digital traces separate. Also, ensure that the layout is symmetrical and balanced to reduce common-mode noise.
  • Calibration involves adjusting the gain and offset of the device to match the specific current sensor and system requirements. Use the CAL pin to adjust the gain, and the OSC pin to adjust the offset. Follow the calibration procedure outlined in the datasheet, and use a known reference signal to verify the accuracy of the measurements.
  • To ensure proper operation, power up the ADE7754ARZ in the following sequence: VCC, AVCC, and then DVCC. This sequence helps prevent latch-up and ensures that the internal voltage regulators are properly enabled.
  • The ADE7754ARZ's high-frequency outputs require proper termination and filtering to prevent noise and oscillations. Use a series resistor and capacitor to terminate the outputs, and consider adding a low-pass filter to remove high-frequency noise.
  • The maximum allowable voltage on the ADE7754ARZ's analog inputs is VCC + 0.3V. Exceeding this voltage can damage the device. Ensure that the input signals are properly attenuated and filtered to prevent overvoltage conditions.
