ADE7754ARZRL - Analog Devices

Description: Data Acquisition ADCs/DACs - Specialised 3 Phase Energy Meter IC w/Watt & VA

Download ADE7754ARZRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

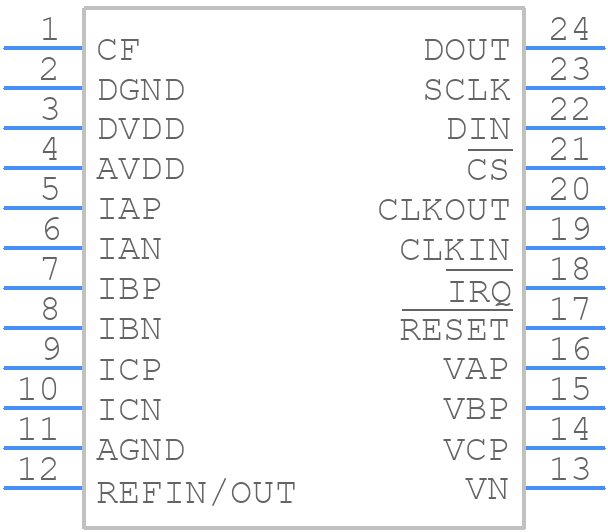

ADE7754ARZRL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADE7754ARZRL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-24
click to zoom
3D Models
ADE7754ARZRL - Analog Devices - 3D model - Small Outline Packages - RW-24
click to zoom

ADE7754ARZRL Details

  • Manufacturer Part Number:

    ADE7754ARZRL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    MS-013AD, SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RW-24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    IT ALSO REQUIRES A 4.75V TO 5.25V DIGITAL SUPPLY

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADE7754ARZRL Frequently Asked Questions (FAQs)

  • A good layout and routing practice is crucial for the ADE7754ARZRL. It is recommended to follow a star-grounding configuration, keep the analog and digital grounds separate, and use a solid ground plane to minimize noise and electromagnetic interference (EMI).
  • The ADE7754ARZRL requires calibration to ensure accurate energy measurement. Calibration involves setting the gain and offset of the device using the CALGAIN and CALOFFSET registers. The calibration process typically involves measuring the voltage and current of a known load and adjusting the gain and offset accordingly.
  • The ADE7754ARZRL has a high accuracy of ±0.5% over a wide range of temperatures and frequencies. However, the actual accuracy may vary depending on the specific application, layout, and calibration.
  • Yes, the ADE7754ARZRL can be used for three-phase energy measurement. However, it requires additional external circuitry and programming to handle the three-phase configuration. The device can measure the voltage and current of each phase and calculate the total active and reactive power.
  • The ADE7754ARZRL has a temperature coefficient of ±50 ppm/°C. To handle temperature drift, it is recommended to use a temperature sensor to monitor the device temperature and adjust the calibration accordingly. Additionally, the device has a built-in temperature compensation feature that can be enabled to minimize the temperature drift.
