ADE7755ARSZ - Analog Devices

Description: ADE7755ARSZ, Energy Measurement, 24-Pin SSOP

Download ADE7755ARSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

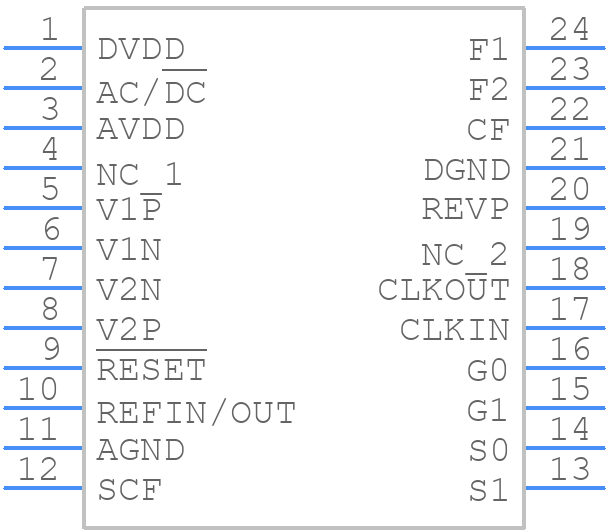

Symbol
ADE7755ARSZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADE7755ARSZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-24 (SSOP)
click to zoom
3D Models
ADE7755ARSZ - Analog Devices - 3D model - Small Outline Packages - RS-24 (SSOP)
click to zoom

ADE7755ARSZ Details

  • Manufacturer Part Number:

    ADE7755ARSZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RS-24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    8.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

ADE7755ARSZ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the ADE7755ARSZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the current sensors. Additionally, the layout should minimize noise coupling and ensure good thermal dissipation.
  • Calibration of the ADE7755ARSZ involves adjusting the gain and offset of the current and voltage channels to match the specific application requirements. This can be done using the device's built-in calibration registers or through external calibration circuits.
  • Temperature changes can affect the ADE7755ARSZ's accuracy. To compensate for this, the device has built-in temperature compensation circuits. Additionally, external temperature sensors can be used to monitor temperature changes and adjust the calibration accordingly.
  • To ensure EMC with the ADE7755ARSZ, follow proper PCB design and layout guidelines, use shielding and filtering, and ensure that the device is properly grounded. Additionally, follow the guidelines for electromagnetic interference (EMI) and radio-frequency interference (RFI) reduction.
  • The recommended power-up sequence for the ADE7755ARSZ involves powering up the analog supply (VCC) before the digital supply (VDD). This ensures that the analog circuitry is stable before the digital circuitry is enabled.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADE7755ARSZ Overview

Use the download button to access the ADE7755ARSZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADE77, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
