ADE7757ARNZ - Analog Devices

Description: ADE7757ARNZ, Energy Measurement, 16-Pin SOIC

Download ADE7757ARNZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

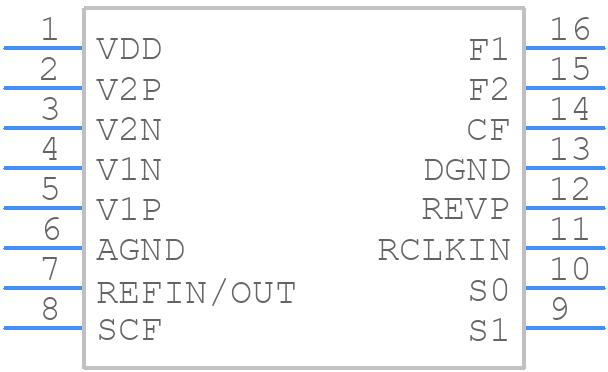

ADE7757ARNZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADE7757ARNZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-16 (SOIC)
click to zoom
3D Models
ADE7757ARNZ - Analog Devices - 3D model - Small Outline Packages - R-16 (SOIC)
click to zoom

ADE7757ARNZ Details

  • Manufacturer Part Number:

    ADE7757ARNZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, MS-012AC, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADE7757ARNZ Frequently Asked Questions (FAQs)

  • The ADE7757ARNZ is a high-frequency device, so it's essential to follow good layout practices to minimize noise and ensure accurate measurements. Place the device close to the current sensor, use a solid ground plane, and keep analog and digital traces separate. Also, avoid running digital traces near the analog inputs.
  • Calibration involves adjusting the gain and offset of the device to match the specific current sensor and system requirements. Use the CAL pin to adjust the gain, and the OSC pin to adjust the offset. Refer to the application note AN-1071 for a detailed calibration procedure.
  • To ensure proper operation, power up the device in the following sequence: VCC, VDD, and then the clock signal. This sequence helps prevent latch-up and ensures that the device initializes correctly.
  • The ADE7757ARNZ outputs high-frequency signals, so it's essential to use proper filtering and signal conditioning to prevent aliasing and noise. Use a low-pass filter with a cutoff frequency below the Nyquist frequency to condition the outputs.
  • The maximum allowable voltage on the analog inputs is ±VREF (typically 2.5V). Exceeding this voltage can damage the device. Ensure that the input signals are within the specified range to prevent damage and ensure accurate measurements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADE7757ARNZ Overview

Use the download button to access the ADE7757ARNZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADE77, or try a keyword search, such as Other Signal Circuits
