Technical Content
Part Image

ADE7757ARNZRL - Analog Devices

Description: Data Acquisition ADCs/DACs - Specialized Energy Meter IC w/Int Oscillator

Download ADE7757ARNZRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

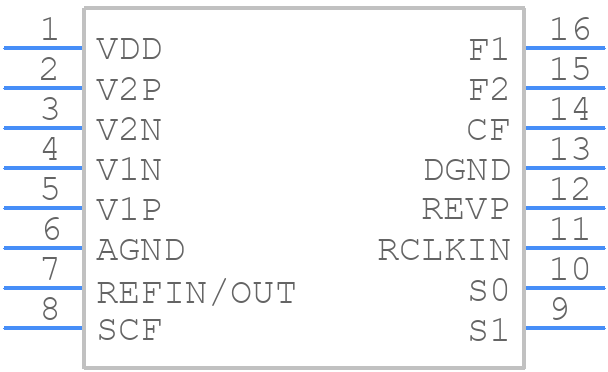

Symbol
ADE7757ARNZRL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADE7757ARNZRL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Standard Small Outline Package [SOIC] Narrow Body (RN-16)
click to zoom
3D Models
ADE7757ARNZRL - Analog Devices - 3D model - Small Outline Packages - 16-Lead Standard Small Outline Package [SOIC] Narrow Body (RN-16)
click to zoom

ADE7757ARNZRL Details

  • Manufacturer Part Number:

    ADE7757ARNZRL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, MS-012AC, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADE7757ARNZRL Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the ADE7757ARNZRL involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the current sensors. Additionally, the device should be placed away from high-frequency noise sources and heat sources.
  • Calibration of the ADE7757ARNZRL involves adjusting the gain and offset of the device to match the specific current sensors and system requirements. This can be done using the device's calibration registers and by following the calibration procedure outlined in the datasheet.
  • The maximum frequency of the pulse output of the ADE7757ARNZRL is 100 kHz. However, the actual frequency may be limited by the system's clock frequency and the device's configuration.
  • Yes, the ADE7757ARNZRL can be used for polyphase energy measurement by using multiple devices, one for each phase, and summing the energy measurements from each phase.
  • The ADE7757ARNZRL uses a proprietary algorithm to accurately measure energy in the presence of harmonic distortion in the current waveform. The device can handle up to 15th harmonic distortion.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADE7757ARNZRL Overview

Use the download button to access the ADE7757ARNZRL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADE77, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
