ADE7758ARWZRL - Analog Devices

Description: Data Acquisition ADCs/DACs - Specialized 3 PhEnergy Mtr IC/per phase info

Download ADE7758ARWZRL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

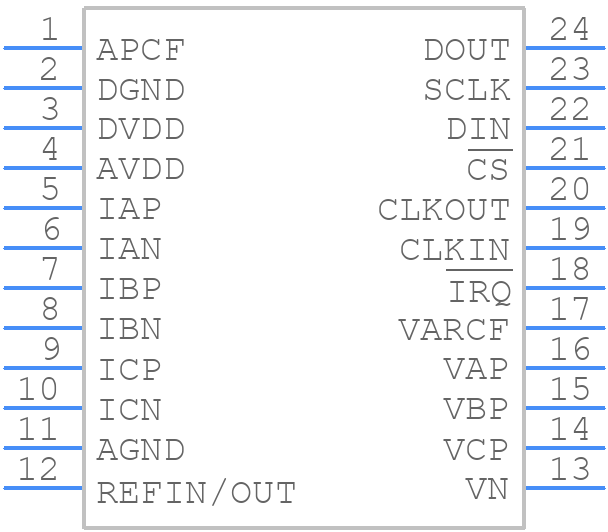

ADE7758ARWZRL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADE7758ARWZRL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-24 (SOIC)
click to zoom
3D Models
ADE7758ARWZRL - Analog Devices - 3D model - Small Outline Packages - RW-24 (SOIC)
click to zoom

ADE7758ARWZRL Details

  • Manufacturer Part Number:

    ADE7758ARWZRL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    LEAD FREE, MS-013-AD, SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    RW-24

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADE7758ARWZRL Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the ADE7758ARWZRL involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the current sensors. Additionally, the device should be placed away from high-frequency noise sources and heat sources.
  • Calibration of the ADE7758ARWZRL involves adjusting the gain and offset of the current and voltage channels to match the specific application requirements. This can be done using the device's built-in calibration registers or through external calibration methods.
  • The maximum frequency of the pulse output of the ADE7758ARWZRL is 100 kHz, which is sufficient for most energy metering applications.
  • Yes, the ADE7758ARWZRL can be used for polyphase energy metering applications by using multiple devices or by using an external phase-shift circuit to measure the phase currents and voltages.
  • The ADE7758ARWZRL uses a proprietary algorithm to accurately measure energy in the presence of harmonic distortion and non-sinusoidal waveforms, ensuring accurate energy measurement in real-world applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADE7758ARWZRL Overview

Use the download button to access the ADE7758ARWZRL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADE77, or try a keyword search, such as Other Analog ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
