ADE7759ARSZ - Analog Devices

Description: Data Acquisition ADCs/DACs - Specialized SGL-Phase Metering w/ di/dt Input

Download ADE7759ARSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

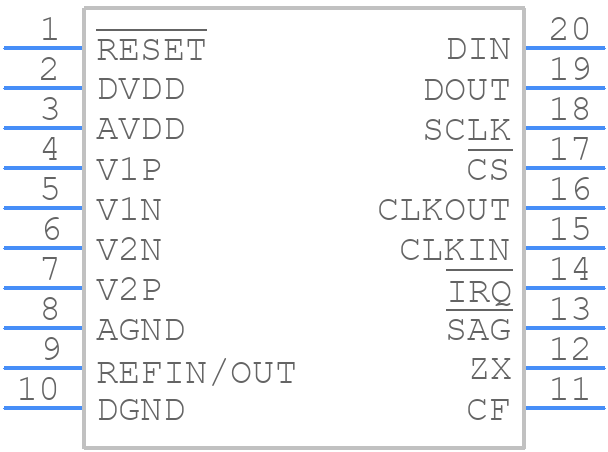

ADE7759ARSZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADE7759ARSZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RS-20 (SSOP)
click to zoom
3D Models
ADE7759ARSZ - Analog Devices - 3D model - Small Outline Packages - RS-20 (SSOP)
click to zoom

ADE7759ARSZ Details

  • Manufacturer Part Number:

    ADE7759ARSZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RS-20

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Additional Feature:

    IT ALSO REQUIRES A 4.75V TO 5.25V DIGITAL SUPPLY

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Current-Max (Isup):

    4 mA

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

ADE7759ARSZ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the ADE7759ARSZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the current sensors. Additionally, the device should be placed away from high-frequency noise sources and heat sources.
  • Calibration of the ADE7759ARSZ involves setting the gain and offset of the current and voltage channels using the CAL_GAIN and CAL_OFFSET registers. The device also has a built-in calibration mode that can be used to automatically calibrate the device.
  • The ADE7759ARSZ can handle current and voltage inputs up to 10 kHz. However, the device is optimized for 50/60 Hz applications and may not provide accurate results at higher frequencies.
  • Yes, the ADE7759ARSZ can be used for polyphase energy measurement by using multiple devices, one for each phase. The devices can be synchronized using the SYNC pin to provide a single energy measurement for the entire polyphase system.
  • The ADE7759ARSZ can be interfaced with a microcontroller using the SPI interface. The device provides a 16-bit data output that can be read by the microcontroller, and the microcontroller can also write to the device's registers to configure it.
