ADE7768ARZ - Analog Devices

Description: ADE7768ARZ, Energy Measurement, 16-Pin SOIC

Download ADE7768ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

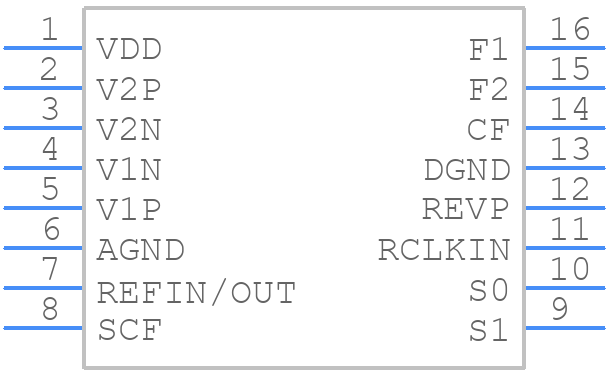

ADE7768ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADE7768ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead SOIC_N
click to zoom
3D Models
ADE7768ARZ - Analog Devices - 3D model - Small Outline Packages - 16-Lead SOIC_N
click to zoom

ADE7768ARZ Details

  • Manufacturer Part Number:

    ADE7768ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    R-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

ADE7768ARZ Frequently Asked Questions (FAQs)

  • The ADE7768ARZ requires careful layout and placement to minimize noise and ensure accurate measurements. It is recommended to place the device close to the current sensors, use a solid ground plane, and keep analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • Calibration of the ADE7768ARZ involves adjusting the gain and offset of the current and voltage channels. This can be done using the device's built-in calibration registers or through external calibration using a reference signal. It is recommended to follow the calibration procedure outlined in the datasheet and application notes.
  • The maximum frequency of the pulse output of the ADE7768ARZ is 1 MHz. However, the actual frequency may be limited by the system's clock frequency and the device's configuration.
  • Yes, the ADE7768ARZ can be used for polyphase energy measurement. The device can measure up to 3-phase currents and voltages, and calculate active, reactive, and apparent power, as well as energy and other parameters.
  • To ensure the accuracy of the ADE7768ARZ's energy measurement, it is recommended to use high-accuracy current and voltage sensors, ensure proper calibration, and minimize noise and interference in the system. Additionally, the device's internal oscillator can be synchronized with an external clock source to improve accuracy.
