ADE7816ACPZ - Analog Devices

Description: Analog Devices ADE7816ACPZ Energy Measurement IC, 40-Pin LFCSP WQ

Download ADE7816ACPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

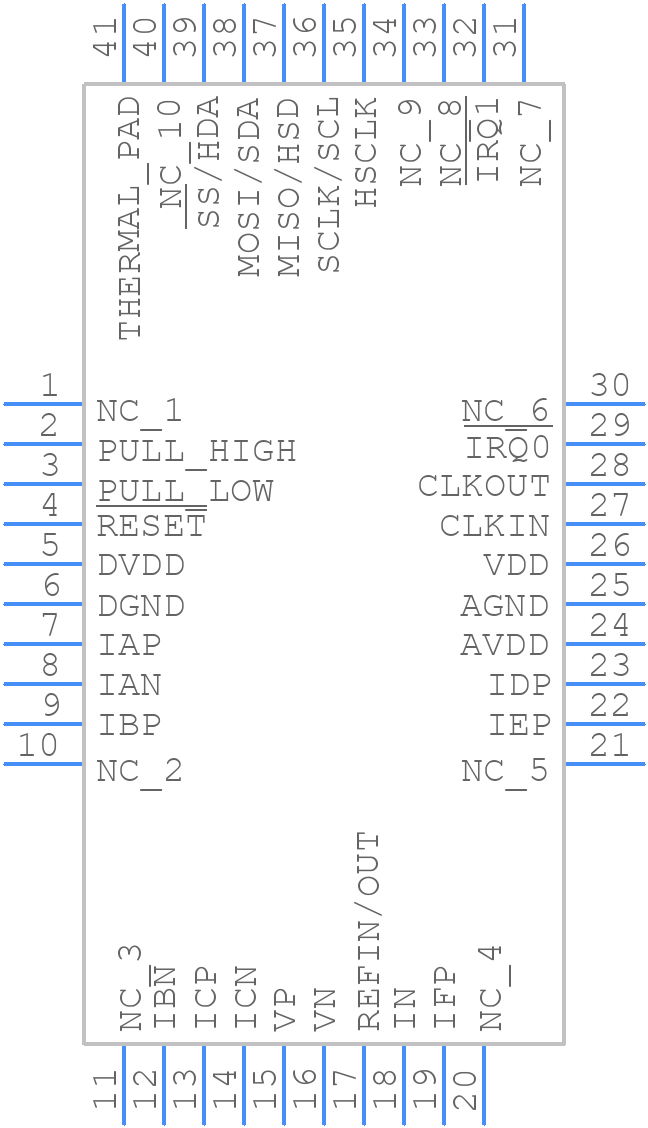

ADE7816ACPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADE7816ACPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-40-10 (LFCSP)
click to zoom
3D Models
ADE7816ACPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-40-10 (LFCSP)
click to zoom

ADE7816ACPZ Details

  • Manufacturer Part Number:

    ADE7816ACPZ

  • Source Url Status Check Date:

    2013-05-01 14:56:35.388

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    6 X 6 MM, ROHS COMPLIANT, MO-220WJJD, LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-10

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

ADE7816ACPZ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the ADE7816ACPZ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing the device close to the power source. Additionally, it is recommended to use a 4-layer PCB with a dedicated analog ground plane to minimize noise and interference.
  • The ADE7816ACPZ requires calibration to ensure accurate measurements. Calibration involves applying a known voltage and current to the device and adjusting the internal registers to match the measured values. The calibration process is typically done using the device's built-in calibration registers and a calibration algorithm provided by Analog Devices.
  • The ADE7816ACPZ can measure voltages up to 600V AC or 900V DC, making it suitable for a wide range of industrial and commercial applications.
  • The ADE7816ACPZ provides highly accurate measurements, with a typical accuracy of ±0.5% for voltage and current measurements, and ±1% for active and reactive power measurements.
  • The ADE7816ACPZ is rated for operation in temperatures ranging from -40°C to 105°C, making it suitable for use in a wide range of industrial and commercial applications, including those in high-temperature environments.
