ADE7854ACPZ - Analog Devices

Description: Analog Devices ADE7854ACPZ Energy Measurement IC, 40-Pin LFCSP WQ

Download ADE7854ACPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

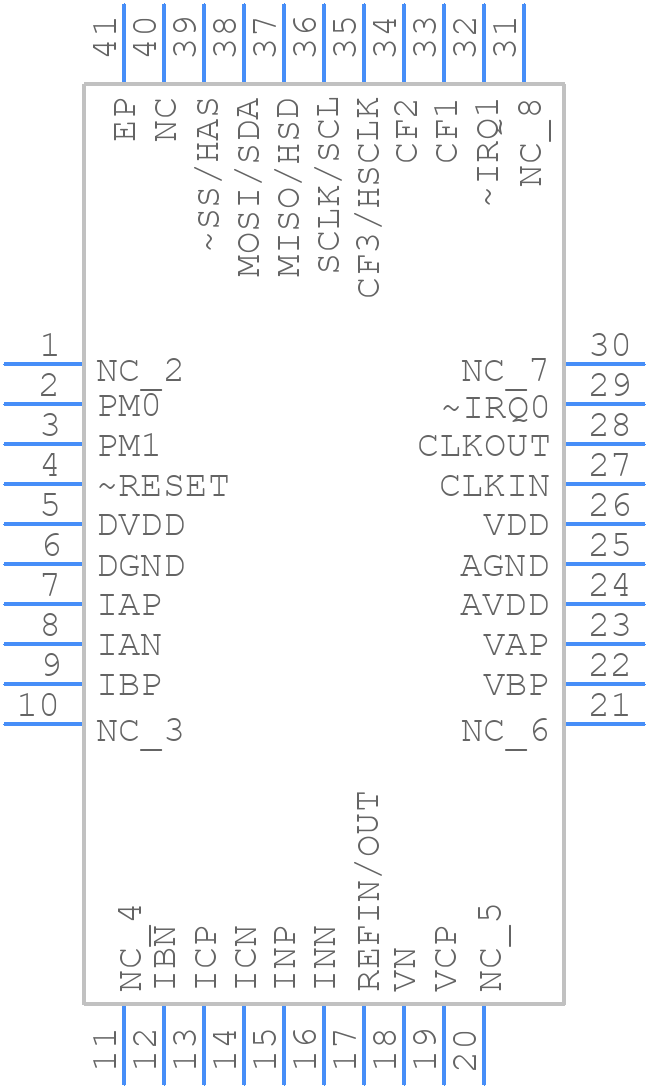

ADE7854ACPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADE7854ACPZ - Analog Devices PCB footprint - Other - Other - QFN50P600X600X80-41N
click to zoom
3D Models
ADE7854ACPZ - Analog Devices - 3D model - Other - QFN50P600X600X80-41N
click to zoom

ADE7854ACPZ Details

  • Manufacturer Part Number:

    ADE7854ACPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN

  • Package Description:

    6 X 6 MM, ROHS COMPLIANT, MO-220WJJD, LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-10

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    24.5 mA

  • Supply Voltage-Max (Vsup):

    3.7 V

  • Supply Voltage-Min (Vsup):

    2.4 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

ADE7854ACPZ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ADE7854ACPZ is to keep the analog and digital grounds separate, use a solid ground plane, and keep the sensitive analog signals away from the digital signals. A 4-layer PCB with a dedicated analog ground layer is recommended. Additionally, the datasheet provides a recommended layout for the device's pins and decoupling capacitors.
  • The ADE7854ACPZ requires calibration to ensure accurate measurements. The calibration process involves setting the gain and offset of the device's analog-to-digital converters (ADCs) and current sensors. The datasheet provides a detailed calibration procedure, which involves applying known input signals and measuring the output codes. The calibration coefficients can be stored in an external EEPROM or flash memory.
  • The maximum frequency of the ADE7854ACPZ's ADCs is 1.024 MHz. However, the device can sample at higher frequencies using its internal PLL and decimation filters. The maximum sampling frequency depends on the specific configuration and application.
  • Yes, the ADE7854ACPZ can measure DC currents using its high-pass filter (HPF) and low-pass filter (LPF) configurations. The HPF configuration allows the device to measure DC currents with high accuracy, while the LPF configuration allows it to measure AC currents with high accuracy.
  • The ADE7854ACPZ can be interfaced with a microcontroller using its SPI or I2C interface. The device's registers can be accessed and configured using the microcontroller's SPI or I2C peripheral. The datasheet provides a detailed description of the device's registers and interface protocols.
