ADE7858AACPZ - Analog Devices

Description: Analog Devices ADE7858AACPZ Energy Measurement IC, 40-Pin LFCSP

Download ADE7858AACPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

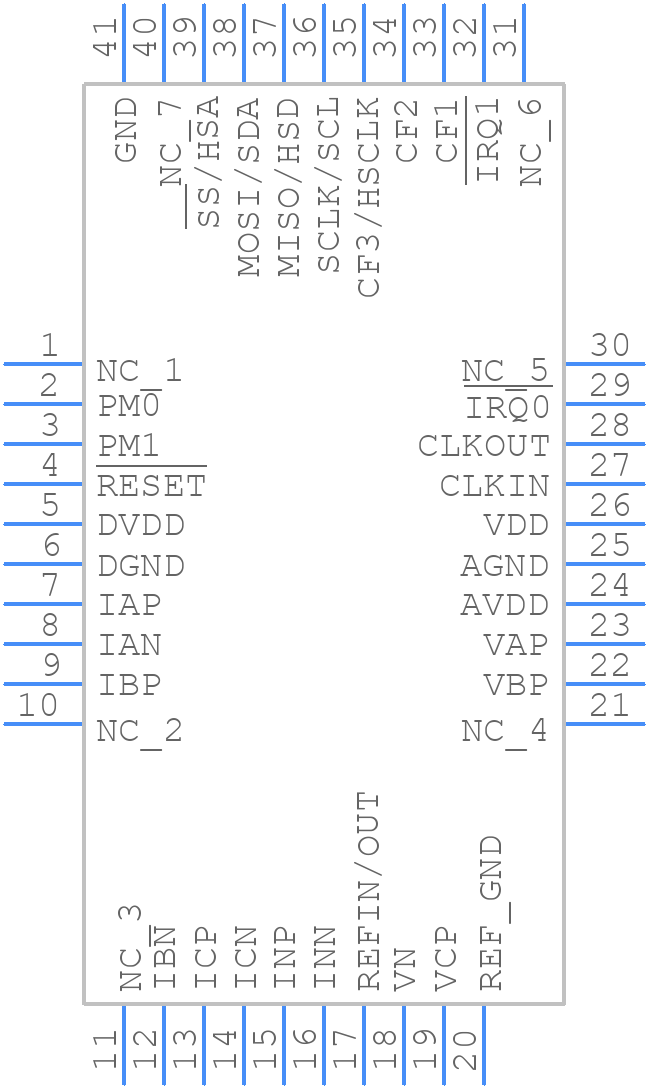

ADE7858AACPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADE7858AACPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40-LFCSP-WQ (6x6)
click to zoom
3D Models
ADE7858AACPZ - Analog Devices - 3D model - Quad Flat No-Lead - 40-LFCSP-WQ (6x6)
click to zoom

ADE7858AACPZ Details

  • Manufacturer Part Number:

    ADE7858AACPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    6 X 6 MM, ROHS COMPLIANT, MO-220-WJJD, LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-10

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    CONSIDERED NORMAL MODE SUPPLY

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.63 V

  • Supply Voltage-Min (Vsup):

    2.97 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

ADE7858AACPZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and separate analog and digital power planes is recommended. Keep sensitive analog traces away from digital traces and ensure good decoupling of power supplies.
  • Calibration involves adjusting the gain and offset of the ADCs and PGA. Use the on-chip calibration registers to adjust the gain and offset. Refer to the application note AN-1071 for detailed calibration procedures.
  • The ADE7858AACPZ can handle input frequencies up to 1 kHz for voltage and current inputs. However, the maximum frequency may vary depending on the specific application and filtering requirements.
  • Yes, the ADE7858AACPZ can be used for three-phase power measurement applications. However, additional external circuitry and processing are required to calculate the three-phase power quantities.
  • Follow proper PCB layout and shielding guidelines, use EMI filters on the input lines, and ensure good grounding and decoupling of the power supplies. Refer to the application note AN-0971 for detailed EMC and EMI guidelines.
