ADE7868AACPZ-RL - Analog Devices

Description: Data Acquisition ADCs/DACs - Specialized Polyphase Multifunction Energy Meter IC

Download ADE7868AACPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

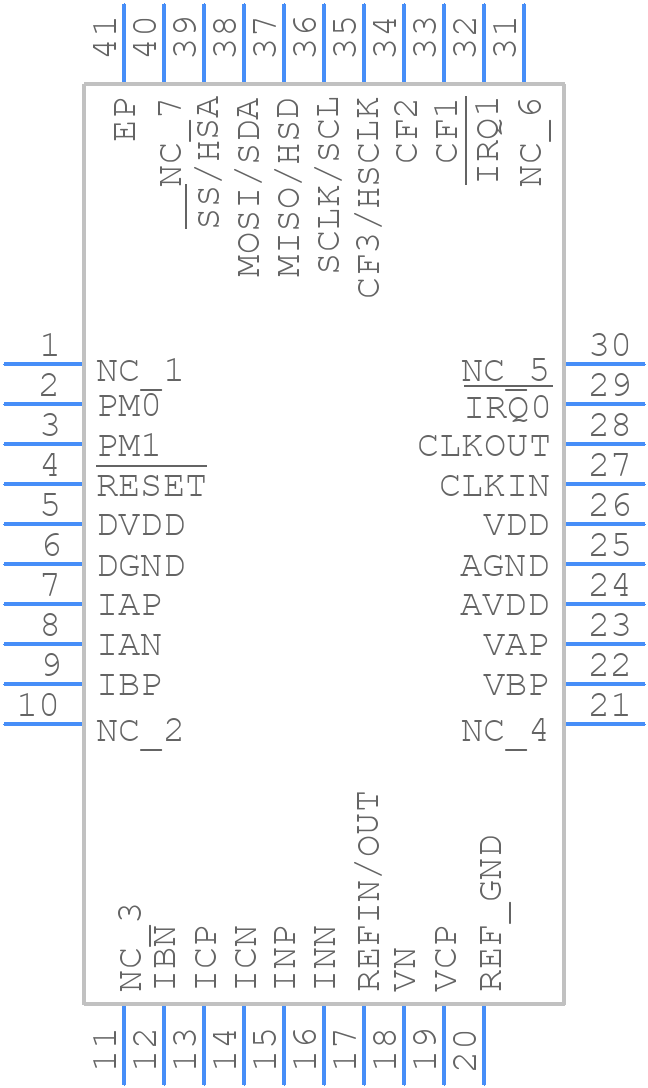

ADE7868AACPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADE7868AACPZ-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-40-10)
click to zoom
3D Models
ADE7868AACPZ-RL - Analog Devices - 3D model - Quad Flat No-Lead - (CP-40-10)
click to zoom

ADE7868AACPZ-RL Details

  • Manufacturer Part Number:

    ADE7868AACPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    6 X 6 MM, ROHS COMPLIANT, MO-220-WJJD, LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-10

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    CONSIDERED NORMAL MODE SUPPLY

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.63 V

  • Supply Voltage-Min (Vsup):

    2.97 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

ADE7868AACPZ-RL Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and separate analog and digital power planes is recommended. Keep sensitive analog traces away from digital traces and ensure good decoupling of power supplies.
  • Calibration involves adjusting the internal gain and offset registers to compensate for device variations. Follow the calibration procedure outlined in the datasheet, and use the provided software tools to simplify the process.
  • The maximum allowed voltage on the analog input pins is 3.5V, which is the same as the supply voltage (AVDD). Exceeding this voltage can damage the device.
  • Yes, the ADE7868AACPZ-RL is suitable for multi-phase power metering applications. It can measure voltage and current on multiple phases simultaneously, and calculate active and reactive power, as well as other relevant parameters.
  • Follow proper PCB design and layout guidelines, use shielding and filtering where necessary, and ensure that the device is properly grounded. Also, follow the guidelines outlined in the datasheet for reducing electromagnetic interference (EMI).
