ADE7868ACPZ-RL - Analog Devices

Description: Poly Phase Multifunction Energy Metering IC with Tamper Detection and Low Power Mode

Download ADE7868ACPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

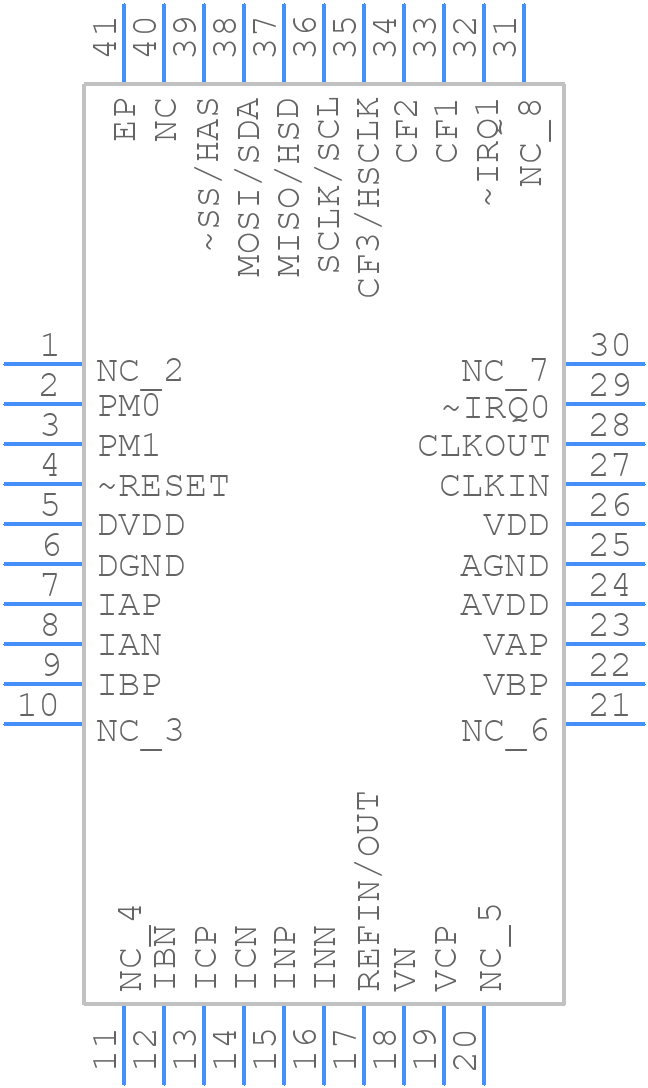

ADE7868ACPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADE7868ACPZ-RL - Analog Devices PCB footprint - Other - Other - QFN50P600X600X80-41N
click to zoom
3D Models
ADE7868ACPZ-RL - Analog Devices - 3D model - Other - QFN50P600X600X80-41N
click to zoom

ADE7868ACPZ-RL Details

  • Manufacturer Part Number:

    ADE7868ACPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN

  • Package Description:

    6 X 6 MM, ROHS COMPLIANT, MO-220WJJD, LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-10

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    24.5 mA

  • Supply Voltage-Max (Vsup):

    3.7 V

  • Supply Voltage-Min (Vsup):

    2.4 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

ADE7868ACPZ-RL Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout guide for the ADE7868ACPZ-RL in the device's evaluation board documentation. It's essential to follow this guide to ensure proper noise reduction, signal integrity, and thermal management.
  • Calibration of the ADE7868ACPZ-RL involves adjusting the gain and offset of the ADCs, as well as the phase calibration of the voltage and current channels. Analog Devices provides a calibration procedure in the device's datasheet and application notes.
  • The ADE7868ACPZ-RL can handle voltage and current inputs up to 1 kHz. However, the device's performance may degrade at higher frequencies due to the internal filtering and signal processing. It's recommended to use external filtering or signal conditioning if higher frequency inputs are required.
  • Yes, the ADE7868ACPZ-RL can be used for three-phase energy measurement by using multiple devices or by using an external phase-shift circuit to convert the three-phase signals to a single-phase signal that can be measured by the device.
  • The typical power consumption of the ADE7868ACPZ-RL is around 150 mW, but this can vary depending on the device's operating mode, clock frequency, and other factors. It's recommended to consult the device's datasheet and application notes for more detailed power consumption information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADE7868ACPZ-RL Overview

Use the download button to access the ADE7868ACPZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADE78, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
