ADE7878ACPZ - Analog Devices

Description: Polyphase Multifunction Energy Metering IC with per Phase Active and Reactive Powers

Download ADE7878ACPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

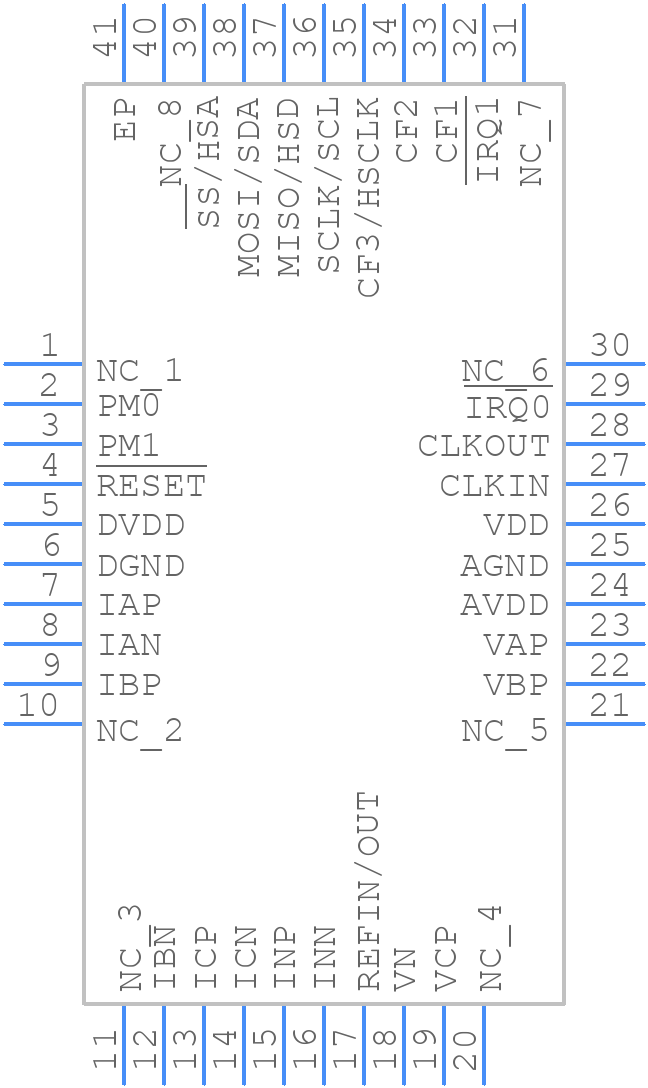

ADE7878ACPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADE7878ACPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - [LFCSP_WQ]
click to zoom
3D Models
ADE7878ACPZ - Analog Devices - 3D model - Quad Flat No-Lead - [LFCSP_WQ]
click to zoom

ADE7878ACPZ Details

  • Manufacturer Part Number:

    ADE7878ACPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFN

  • Package Description:

    6 X 6 MM, ROHS COMPLIANT, MO-220WJJD, LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-10

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    24.5 mA

  • Supply Voltage-Max (Vsup):

    3.7 V

  • Supply Voltage-Min (Vsup):

    2.4 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

ADE7878ACPZ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the ADE7878ACPZ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • The ADE7878ACPZ requires calibration to ensure accurate measurements. Calibration involves applying a known voltage and current to the device and adjusting the internal calibration registers to match the measured values. The calibration process is typically done using the ADE7878ACPZ evaluation board and software provided by Analog Devices.
  • The maximum voltage that can be applied to the ADE7878ACPZ is 600V AC or 850V DC. Exceeding this voltage can damage the device.
  • The ADE7878ACPZ has built-in overcurrent detection and protection. In the event of an overcurrent condition, the device will trigger an interrupt and shut down the power stage. The device can be configured to latch off or auto-retry after an overcurrent event.
  • The ADE7878ACPZ has a typical accuracy of ±1% for voltage measurements and ±0.5% for current measurements. The accuracy can be affected by factors such as temperature, noise, and calibration.
