ADE7923ARWZ - Analog Devices

Description: Data Acquisition ADCs/DACs - Specialized 3-Channel, Sigma Delta ADC

Download ADE7923ARWZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

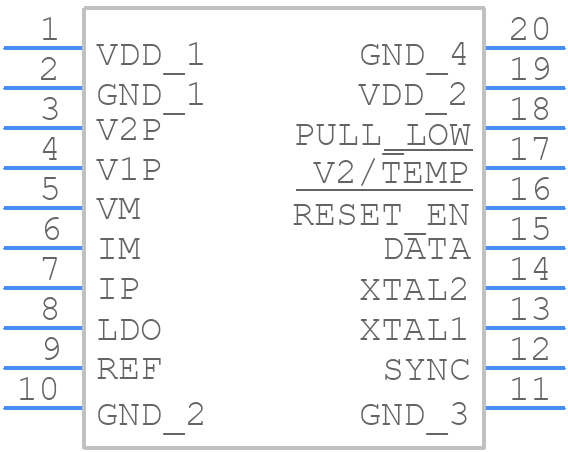

Symbol
ADE7923ARWZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADE7923ARWZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RW-20
click to zoom
3D Models
ADE7923ARWZ - Analog Devices - 3D model - Small Outline Packages - RW-20
click to zoom

ADE7923ARWZ Details

  • Manufacturer Part Number:

    ADE7923ARWZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RW-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    3.63 V

  • Supply Voltage-Min (Vsup):

    2.97 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

ADE7923ARWZ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the ADE7923ARWZ involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the traces between the device and the sensing resistors. Additionally, it is recommended to use a 4-layer PCB with a dedicated analog ground layer and to avoid running digital signals under the device.
  • The ADE7923ARWZ requires calibration to ensure accurate energy measurements. This involves setting the gain and offset registers to compensate for any errors in the sensing resistors and the device itself. The calibration process typically involves measuring the voltage and current outputs of the device and adjusting the gain and offset registers accordingly.
  • The ADE7923ARWZ can handle voltage and current inputs up to 1 kHz. However, the device is optimized for 50/60 Hz applications and may not provide accurate measurements at higher frequencies.
  • Yes, the ADE7923ARWZ can be used in a polyphase system by using multiple devices, one for each phase. Each device would measure the voltage and current of its respective phase, and the measurements would be combined to calculate the total energy consumption.
  • The ADE7923ARWZ has built-in overcurrent and overvoltage detection capabilities. In the event of an overcurrent or overvoltage condition, the device will set a flag and can be configured to generate an interrupt. The device can also be configured to limit the output current to prevent damage to the device or the system.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADE7923ARWZ Overview

Use the download button to access the ADE7923ARWZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADE79, or try a keyword search, such as Other Signal Circuits
