ADE9078ACPZ - Analog Devices

Description: Analog Front End - AFE Polyphase Energy Metering AFE

Download ADE9078ACPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

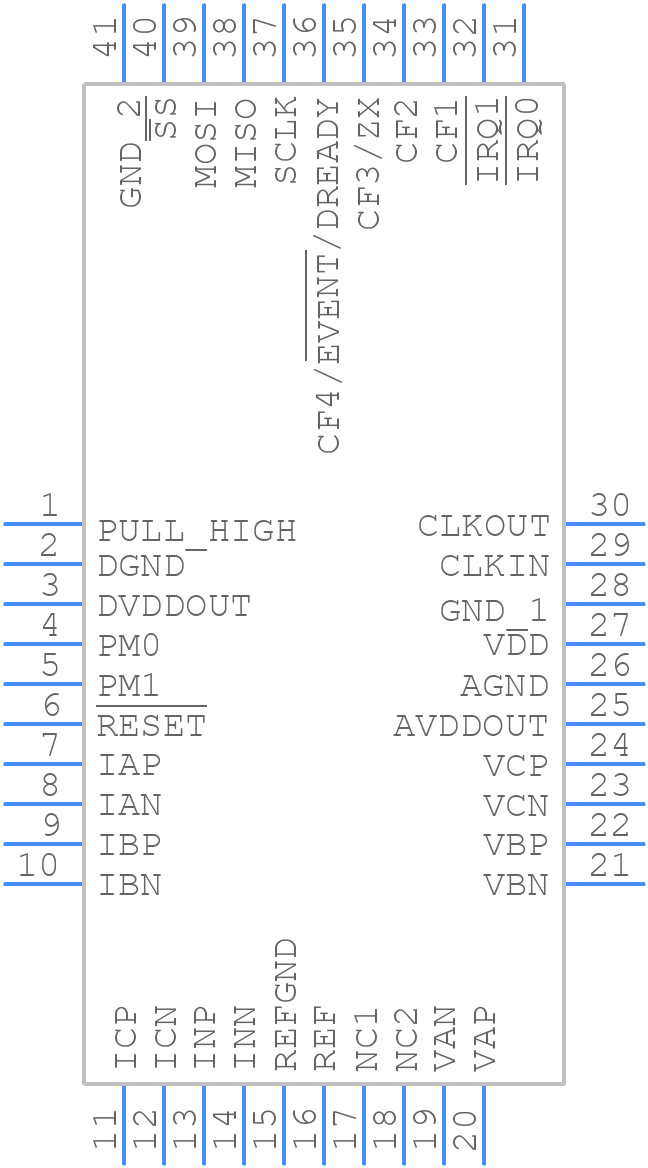

Symbol
ADE9078ACPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADE9078ACPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE_2023-7
click to zoom
3D Models
ADE9078ACPZ - Analog Devices - 3D model - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE_2023-7
click to zoom

ADE9078ACPZ Details

  • Manufacturer Part Number:

    ADE9078ACPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-7

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-08-11

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.63 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

ADE9078ACPZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply connections and keep the sensitive analog signals away from the digital signals.
  • Calibration involves adjusting the internal gain and offset of the ADC. Use the CAL pin to initiate calibration. The device will then adjust its internal gain and offset to optimize performance. Refer to the datasheet for the calibration procedure.
  • Power up the device in the following sequence: VDD, AVDD, and then DVDD. Ensure that the power supplies are stable and within the recommended voltage range before applying the clock signal.
  • Use a low-inductance, low-capacitance PCB layout for the digital outputs. Terminate the outputs with a 50-ohm resistor to match the impedance of the transmission line. Use a shielded cable or a twisted pair to connect to the receiving device.
  • The ADE9078ACPZ can support clock frequencies up to 64 MHz. However, the maximum clock frequency may vary depending on the specific application and the quality of the clock signal.
