ADE9153AACPZ - Analog Devices

Description: Data Acquisition ADCs/DACs - Specialized 1 PH Mtr IC w/ Auto Calibration

Download ADE9153AACPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

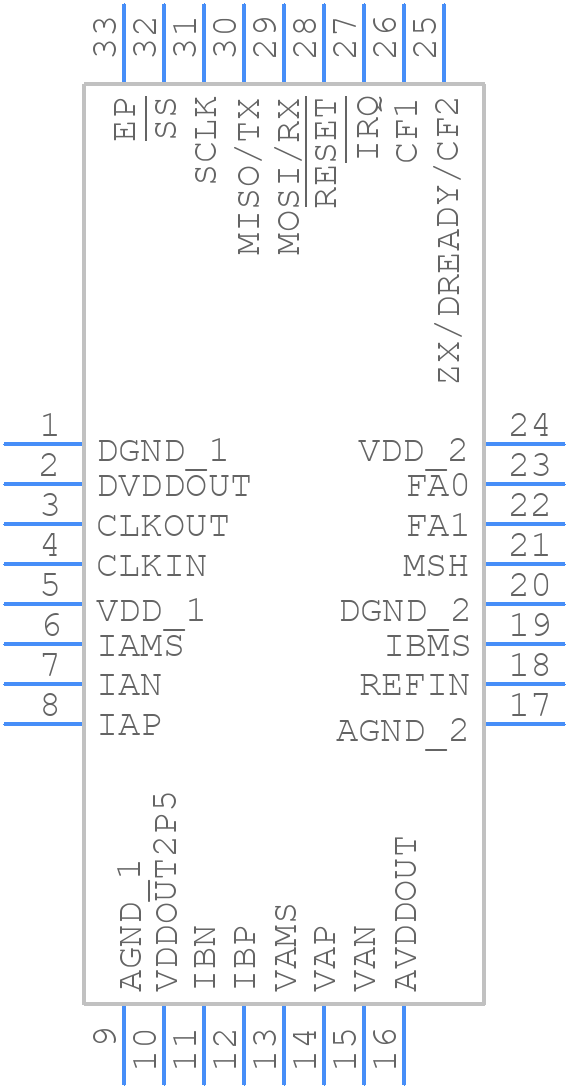

ADE9153AACPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADE9153AACPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP-WQ CP-32-12
click to zoom
3D Models
ADE9153AACPZ - Analog Devices - 3D model - Quad Flat No-Lead - LFCSP-WQ CP-32-12
click to zoom

ADE9153AACPZ Details

  • Manufacturer Part Number:

    ADE9153AACPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-02-02

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.63 V

  • Supply Voltage-Min (Vsup):

    2.97 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

ADE9153AACPZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply and keep the high-frequency components away from the analog circuitry.
  • Calibration involves adjusting the gain and offset of the ADCs to match the specific meter's CT and PT ratios. Use the on-chip calibration registers to adjust the gain and offset. Refer to the application note AN-1353 for a detailed calibration procedure.
  • The maximum frequency of the pulse output is 10 kHz. However, the recommended frequency is 1 kHz to 5 kHz for most applications.
  • Yes, the ADE9153AACPZ can be used for polyphase energy metering applications. It can measure voltage and current for each phase and calculate the total active and reactive power. However, additional external circuitry and software are required to implement polyphase metering.
  • To ensure accuracy in the presence of harmonic distortion, use a high-accuracy CT and PT, and implement a harmonic compensation algorithm in the meter's firmware. The ADE9153AACPZ provides a built-in harmonic measurement function that can be used to compensate for harmonic distortion.
