ADE9178GTL+ - Analog Devices

Description: Energy Management DSP with PEN Fault Detection

Download ADE9178GTL+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

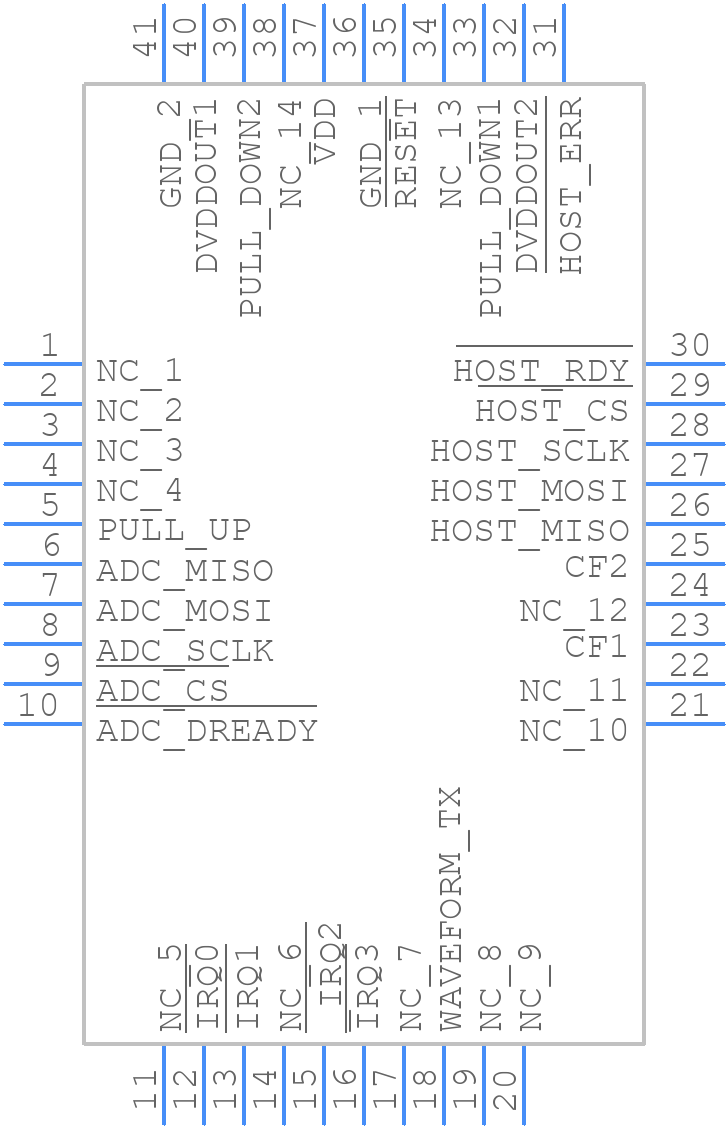

ADE9178GTL+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADE9178GTL+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-40-33-1
click to zoom
3D Models
ADE9178GTL+ - Analog Devices - 3D model - Quad Flat No-Lead - CP-40-33-1
click to zoom

ADE9178GTL+ Details

  • Manufacturer Part Number:

    ADE9178GTL+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.35

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

ADE9178GTL+ Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout guide for the ADE9178GTL+ in the 'PCB Layout Guidelines' section of the datasheet. Additionally, the company offers a reference design (EVAL-ADE9178GTL+) that includes a PCB layout example.
  • The ADE9178GTL+ requires a one-time calibration process to ensure accurate measurements. The calibration process involves writing specific values to the device's registers. Analog Devices provides a calibration guide in the 'Calibration' section of the datasheet, as well as a software tool (ADE917x Calibration Tool) to assist with the process.
  • The maximum sampling rate of the ADE9178GTL+ is 640 kSPS (kilosamples per second) for the simultaneous sampling of all three channels. However, the sampling rate can be adjusted based on the specific application requirements.
  • The ADE9178GTL+ is designed to operate with a 3.3V power supply. While it may be possible to use it with a 5V power supply, it is not recommended as it may exceed the maximum rating of the device and affect its performance and reliability.
  • The ADE9178GTL+ can be interfaced with a microcontroller using the SPI (Serial Peripheral Interface) or I2C (Inter-Integrated Circuit) interface. Analog Devices provides example code and interface guidelines in the 'Interface' section of the datasheet.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADE9178GTL+ Overview

Use the download button to access the ADE9178GTL+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADE91, or try a keyword search, such as Digital Signal Processors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
