ADE9178GTL+T - Analog Devices

Description: Energy Management DSP with PEN Fault Detection

Download ADE9178GTL+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

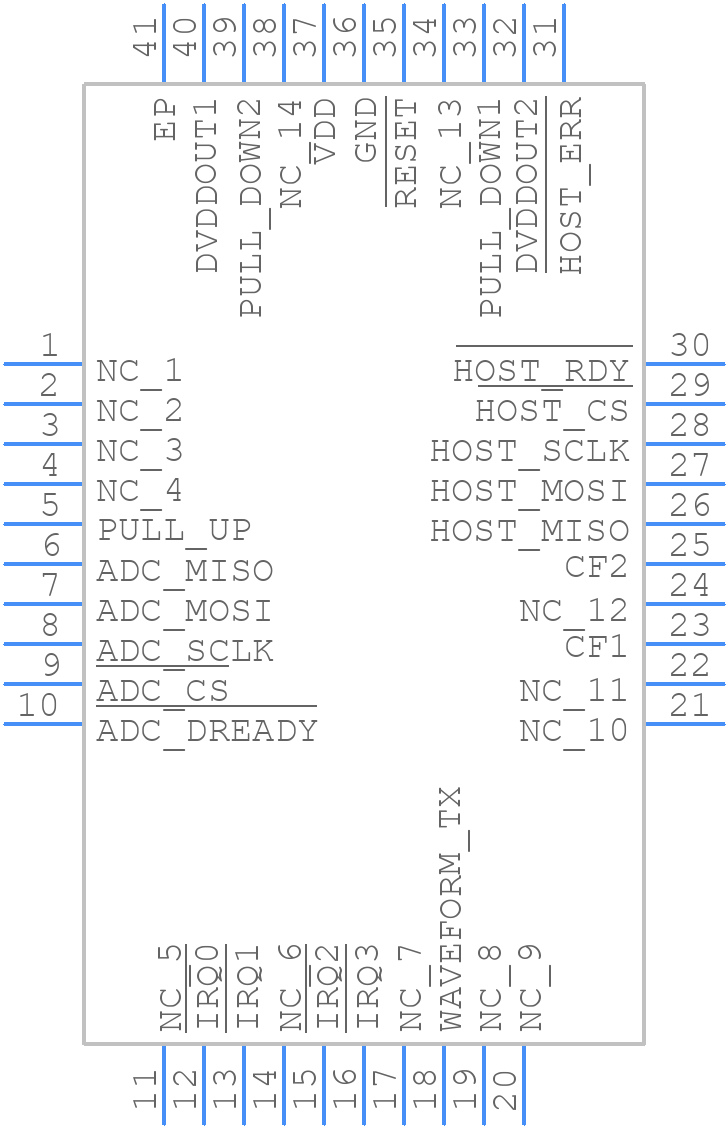

ADE9178GTL+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADE9178GTL+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-40-33
click to zoom
3D Models
ADE9178GTL+T - Analog Devices - 3D model - Quad Flat No-Lead - CP-40-33
click to zoom

ADE9178GTL+T Details

  • Manufacturer Part Number:

    ADE9178GTL+T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.35

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

ADE9178GTL+T Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout guide for the ADE9178GTL+T in the 'PCB Layout Guidelines' section of the datasheet. Additionally, the company offers a reference design, the CN0537, which includes a PCB layout example.
  • The ADE9178GTL+T requires a one-time calibration process to ensure accurate measurements. The calibration process involves writing specific values to the device's registers. Analog Devices provides a calibration guide in the 'Calibration' section of the datasheet, as well as a software tool, the ADE917x Calibration Tool, to assist with the process.
  • The maximum sampling rate of the ADE9178GTL+T is 640 kSPS (kilosamples per second). However, the actual sampling rate may be limited by the system's clock frequency, analog input bandwidth, and digital filter settings.
  • No, the ADE9178GTL+T is designed to operate with a 3.3V power supply. Using a 5V power supply may damage the device or affect its performance. Analog Devices recommends using a 3.3V power supply with a minimum of 1.5A current capability.
  • The ADE9178GTL+T can be interfaced with a microcontroller using the SPI (Serial Peripheral Interface) protocol. Analog Devices provides a detailed description of the SPI interface and communication protocol in the 'Digital Interface' section of the datasheet.
