ADF4007BCPZ-RL7 - Analog Devices

Description: Phase Locked Loops - PLL High Freq Divider/ Synthesizer

Download ADF4007BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

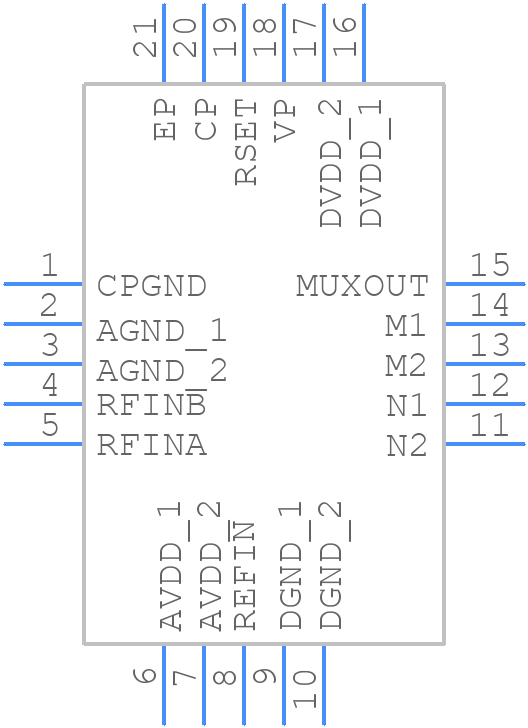

ADF4007BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4007BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-20-6)
click to zoom
3D Models
ADF4007BCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-20-6)
click to zoom

ADF4007BCPZ-RL7 Details

  • Manufacturer Part Number:

    ADF4007BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    MO-220-VGGD-1, LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-6

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.3 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ADF4007BCPZ-RL7 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ADF4007BCPZ-RL7 can be found in the AN-0979 application note from Analog Devices, which provides guidelines for PCB design, component placement, and routing to ensure optimal performance and minimize noise.
  • The loop filter design for the ADF4007BCPZ-RL7 can be optimized using the ADIsimPLL design tool from Analog Devices, which provides a graphical interface for designing and simulating the loop filter. The tool takes into account the device's specifications and provides recommendations for component values and topology.
  • The ADF4007BCPZ-RL7 has an operating temperature range of -40°C to +125°C, but it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • Troubleshooting common issues with the ADF4007BCPZ-RL7 can be done by following the guidelines in the device's datasheet and application notes. Additionally, Analog Devices provides a PLL Troubleshooting Guide that provides step-by-step procedures for identifying and resolving common issues.
  • The recommended power supply decoupling scheme for the ADF4007BCPZ-RL7 involves using a combination of ceramic and electrolytic capacitors to filter out noise and ensure a stable power supply. A 10nF ceramic capacitor and a 10uF electrolytic capacitor are recommended for decoupling the VCC and AVCC pins.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADF4007BCPZ-RL7 Overview

Use the download button to access the ADF4007BCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF40, or try a keyword search, such as PLL or Frequency Synthesis Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
