ADF4106SCPZ-EP-R7 - Analog Devices

Description: Clock Generator 20MHz to 6GHz Input 325MHz Output 20-Pin LFCSP EP T/R

Download ADF4106SCPZ-EP-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

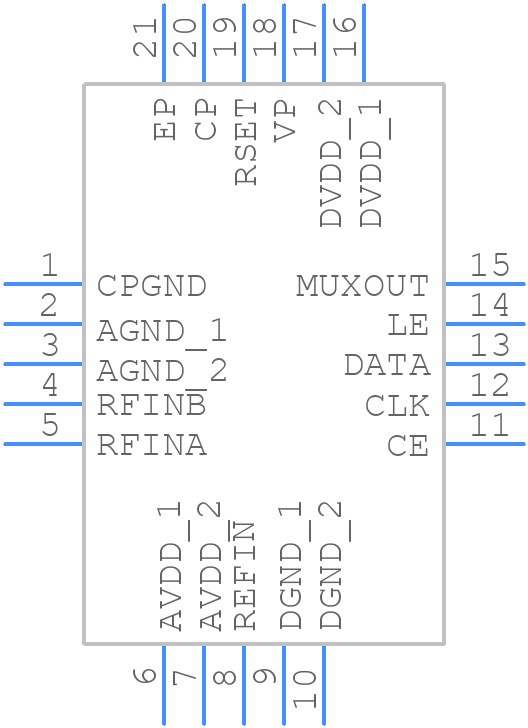

ADF4106SCPZ-EP-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4106SCPZ-EP-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-20-1 (LFCSP)
click to zoom
3D Models
ADF4106SCPZ-EP-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-20-1 (LFCSP)
click to zoom

ADF4106SCPZ-EP-R7 Details

  • Manufacturer Part Number:

    ADF4106SCPZ-EP-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, MO-220VGGD1, LFCSP-16

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-6

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    13 mA

  • Supply Voltage-Max (Vsup):

    3.3 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADF4106SCPZ-EP-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADF4106SCPZ-EP-R7 involves keeping the analog and digital sections separate, using a solid ground plane, and minimizing the length of the clock signal traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane. The datasheet provides some general guidelines, but a more detailed application note (AN-0971) from Analog Devices provides a comprehensive guide to PCB layout and design considerations.
  • The ADF4106SCPZ-EP-R7 is a programmable PLL synthesizer, and its frequency can be programmed using a 3-wire serial interface. The device has a 24-bit register that controls the frequency, and the frequency can be calculated using the formula: fOUT = (fREF x N) / R, where fREF is the reference frequency, N is the integer value programmed into the device, and R is the R counter value. The datasheet provides a detailed description of the programming sequence and the calculation of the N and R values.
  • The ADF4106SCPZ-EP-R7 can generate frequencies up to 6.2 GHz. However, the maximum frequency is dependent on the reference frequency and the R counter value. The datasheet provides a detailed description of the frequency range and the limitations of the device.
  • The ADF4106SCPZ-EP-R7 has a lock detect output (LD) that indicates when the device is locked to the desired frequency. The LD output can be connected to a microcontroller or a monitoring circuit to ensure that the device is locked. Additionally, the device has a programmable lock detect threshold that allows the user to set the desired lock detect criteria. The datasheet provides a detailed description of the lock detect functionality and the recommended usage.
  • The power consumption of the ADF4106SCPZ-EP-R7 is typically around 450 mW, but it can vary depending on the operating frequency, the reference frequency, and the output power. The datasheet provides a detailed description of the power consumption and the recommended power supply decoupling.
