ADF4106SCPZ-EP - Analog Devices

Description: Clock Generator 20MHz to 6GHz-IN 325MHz-OUT 20-Pin LFCSP EP Tray

Download ADF4106SCPZ-EP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

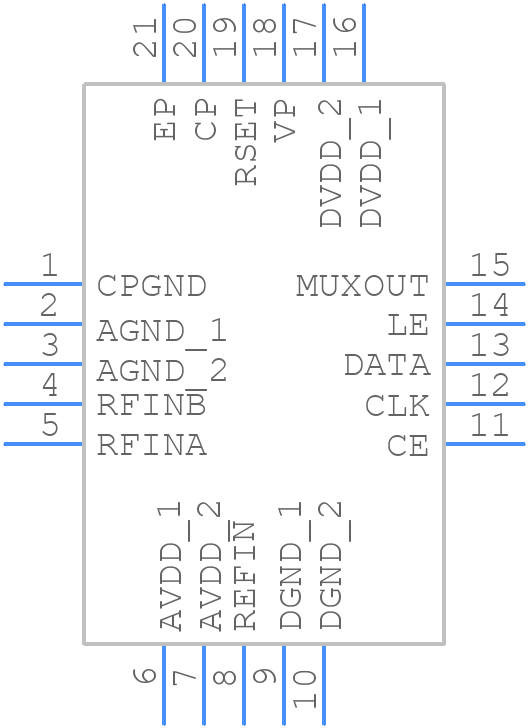

ADF4106SCPZ-EP - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4106SCPZ-EP - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-20-1 (LFCSP)
click to zoom
3D Models
ADF4106SCPZ-EP - Analog Devices - 3D model - Quad Flat No-Lead - CP-20-1 (LFCSP)
click to zoom

ADF4106SCPZ-EP Details

  • Manufacturer Part Number:

    ADF4106SCPZ-EP

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, MO-220VGGD1, LFCSP-16

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-6

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    13 mA

  • Supply Voltage-Max (Vsup):

    3.3 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADF4106SCPZ-EP Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADF4106SCPZ-EP involves keeping the analog and digital sections separate, using a solid ground plane, and minimizing the length of the clock signal traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the power supply and another for the ground plane.
  • The ADF4106SCPZ-EP requires calibration to ensure accurate frequency synthesis. This can be done by following the calibration procedure outlined in the datasheet, which involves writing specific values to the device's registers. It's also recommended to use the ADIsimPLL design tool to simulate and optimize the device's performance for your specific application.
  • When selecting loop filter components for the ADF4106SCPZ-EP, it's essential to consider the device's noise bandwidth, loop bandwidth, and phase margin requirements. The loop filter components should be chosen to ensure that the phase margin is greater than 45 degrees to prevent oscillations. Additionally, the component values should be selected to minimize noise and ensure stability.
  • To troubleshoot issues with the ADF4106SCPZ-EP, it's recommended to use a spectrum analyzer to visualize the output frequency spectrum. Check the device's register settings and ensure that they are correct. Also, verify that the power supply and clock signals are stable and within the recommended specifications. If issues persist, consult the datasheet and application notes for troubleshooting guidelines.
  • The ADF4106SCPZ-EP is a high-frequency device that can generate heat. To ensure reliable operation over temperature, it's essential to provide adequate thermal management. This can be achieved by using a heat sink, ensuring good airflow, and keeping the device away from other heat sources. Additionally, the device's junction temperature should be monitored and kept within the recommended specifications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADF4106SCPZ-EP Overview

Use the download button to access the ADF4106SCPZ-EP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF41, or try a keyword search, such as PLL or Frequency Synthesis Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
