ADF4107BCPZ-REEL - Analog Devices

Description: Phase Locked Loops - PLL 7GHZ PLL SYNTHESIZER

Download ADF4107BCPZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

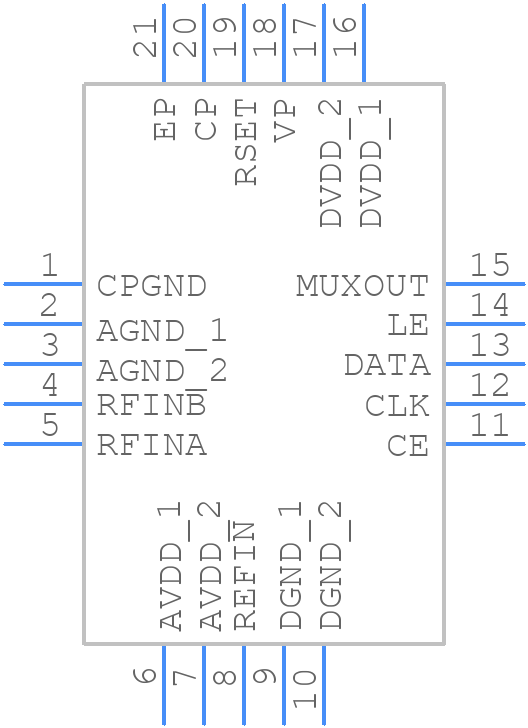

ADF4107BCPZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4107BCPZ-REEL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-20-6
click to zoom
3D Models
ADF4107BCPZ-REEL - Analog Devices - 3D model - Quad Flat No-Lead - CP-20-6
click to zoom

ADF4107BCPZ-REEL Details

  • Manufacturer Part Number:

    ADF4107BCPZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, MO-220VGGD-1, LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-6

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.3 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ADF4107BCPZ-REEL Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout, and land pattern in the ADF4107BCPZ-REEL datasheet, but it's also recommended to follow the general guidelines for high-frequency PCB design, such as using a solid ground plane, minimizing trace lengths, and using vias to connect the ground plane to the device's exposed pad.
  • Analog Devices provides an ADF4107 evaluation board and software that can be used to evaluate the device's performance in a specific application. Additionally, you can consult with Analog Devices' application notes and technical support team for guidance on optimizing performance.
  • The ADF4107BCPZ-REEL is rated for operation from -40°C to +85°C, but it's recommended to consult the datasheet for specific operating conditions and derating information.
  • The ADF4107BCPZ-REEL is not specifically designed or tested for use in radiation-hardened application. If you need a radiation-hardened device, you should consult with Analog Devices' radiation-hardened product offerings and consult with their technical support team.
  • The recommended power-up sequence for the ADF4107BCPZ-REEL is to power up the VDD supply first, followed by the VCC supply. It's also recommended to follow the power-up sequence recommended in the datasheet and to consult with Analog Devices' application notes for specific guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADF4107BCPZ-REEL Overview

Use the download button to access the ADF4107BCPZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF41, or try a keyword search, such as PLL or Frequency Synthesis Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
