ADF4108BCPZ-RL - Analog Devices

Description: Phase Locked Loops - PLL PLL FREQUENCY SYNTHESIZER

Download ADF4108BCPZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

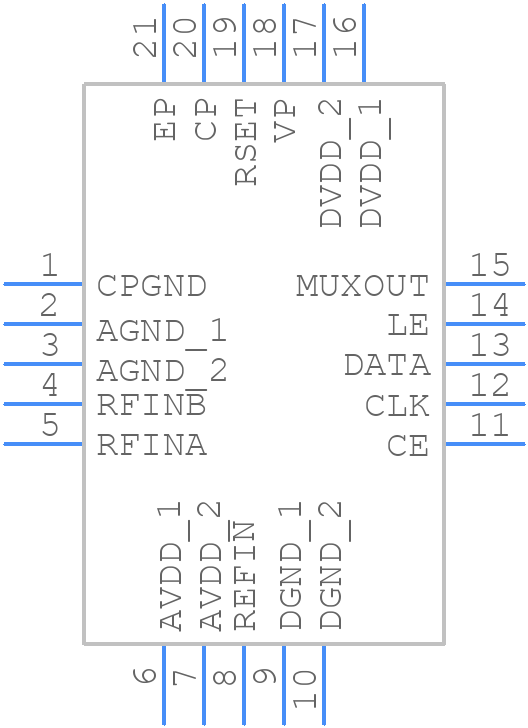

ADF4108BCPZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4108BCPZ-RL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-20-6)
click to zoom
3D Models
ADF4108BCPZ-RL - Analog Devices - 3D model - Quad Flat No-Lead - (CP-20-6)
click to zoom

ADF4108BCPZ-RL Details

  • Manufacturer Part Number:

    ADF4108BCPZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, LEAD FREE, LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-6

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    R-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3.2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ADF4108BCPZ-RL Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ADF4108BCPZ-RL can be found in the 'PCB Layout Guidelines' section of the datasheet. Additionally, Analog Devices provides a reference design and layout guidelines in the 'ADF4108 Evaluation Board' documentation.
  • The PLL loop filter design can be optimized using the 'PLL Loop Filter Design' section of the datasheet, which provides a step-by-step guide and equations to calculate the component values. Additionally, Analog Devices provides a PLL Loop Filter Design Tool that can be used to simplify the design process.
  • The maximum frequency range of the ADF4108BCPZ-RL is 6.4 GHz, but it can be extended up to 10 GHz with the use of an external doubler or multiplier. However, this requires careful design and layout considerations to ensure optimal performance.
  • The ADF4108BCPZ-RL can be programmed using a microcontroller through a 3-wire serial interface (SPI). The programming sequence and register maps are provided in the datasheet. Additionally, Analog Devices provides example code and programming guides for popular microcontrollers.
  • The typical power consumption of the ADF4108BCPZ-RL is 450 mW at 3.3 V supply voltage, but it can vary depending on the operating frequency, output power, and other factors. The datasheet provides a detailed power consumption breakdown and guidelines for power supply design.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADF4108BCPZ-RL Overview

Use the download button to access the ADF4108BCPZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF41, or try a keyword search, such as PLL or Frequency Synthesis Circuits
