ADF4108BCPZ - Analog Devices

Description: ADF4108BCPZ, PLL Frequency Synthesizer, 20-Pin CP 20 1

Download ADF4108BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

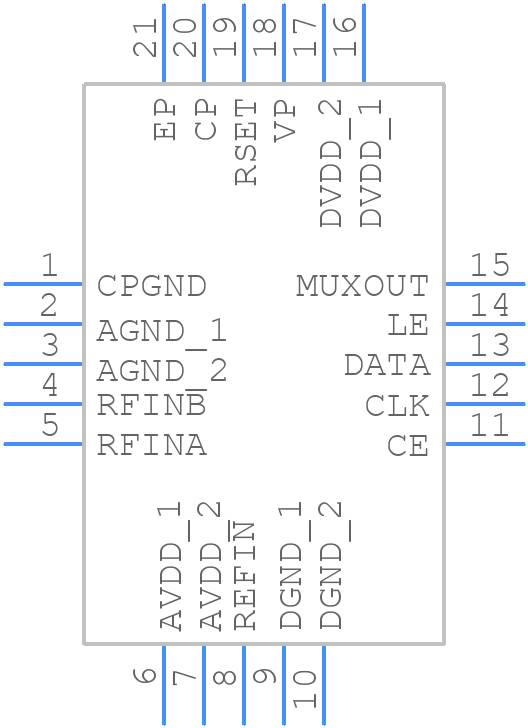

ADF4108BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4108BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-20-6 (LFCSP)
click to zoom
3D Models
ADF4108BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-20-6 (LFCSP)
click to zoom

ADF4108BCPZ Details

  • Manufacturer Part Number:

    ADF4108BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, LEAD FREE, LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-6

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    R-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3.2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ADF4108BCPZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the PLL loop filter components close to the device and use a low-ESR capacitor for the VCO tuning voltage.
  • Use the ADIsimPLL tool or a similar PLL loop filter design tool to optimize the filter components based on the desired PLL bandwidth, phase margin, and settling time.
  • The maximum frequency deviation is dependent on the VCO tuning voltage and the PLL loop bandwidth. Typically, a frequency deviation of up to ±10 MHz can be achieved with a VCO tuning voltage range of 0.5 V to 2.5 V.
  • Use a low-dropout linear regulator or a switching regulator with a low noise output to power the ADF4108BCPZ. Add decoupling capacitors (e.g., 100 nF and 10 μF) close to the device to filter out noise and ensure a stable power supply.
  • Use a 3-wire serial interface (SPI) to program the ADF4108BCPZ. Ensure that the clock frequency is within the recommended range (e.g., 1 MHz to 10 MHz) and use a logic analyzer or oscilloscope to verify the programming sequence.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADF4108BCPZ Overview

Use the download button to access the ADF4108BCPZ schematic symbol, PCB footprint, and 3D model.
