ADF4112BRU - Analog Devices

Description: Clock Generator 5MHz to 3GHz-IN 165MHz-OUT 16-Pin TSSOP Tube

Download ADF4112BRU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

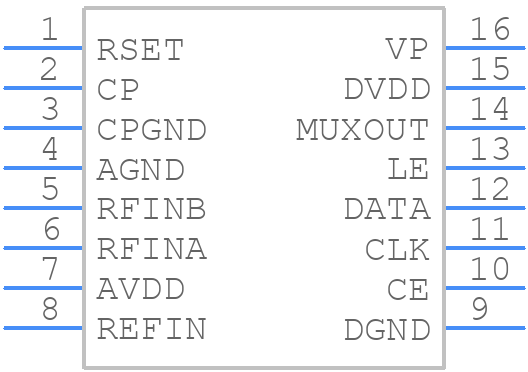

Symbol
ADF4112BRU - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4112BRU - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)
click to zoom
3D Models
ADF4112BRU - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)
click to zoom

ADF4112BRU Details

  • Manufacturer Part Number:

    ADF4112BRU

  • Source Url Status Check Date:

    2013-05-01 14:56:35.576

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Additional Feature:

    6-BIT SWALLOW COUNTER

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e0

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    4 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

ADF4112BRU Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADF4112BRU involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the voltage regulator. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog ground and another for the digital ground.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves writing specific values to the device's registers. It's also important to ensure that the device is properly powered and that the reference clock is stable and accurate.
  • When selecting loop filter component values, consider the desired phase noise performance, loop bandwidth, and stability. A good starting point is to use the recommended values in the datasheet, and then adjust them based on simulation and measurement results. It's also important to consider the component tolerances and parasitics.
  • To troubleshoot common issues, start by verifying the device's configuration and register settings. Check the power supply and reference clock for noise and jitter. Use a spectrum analyzer to measure the output frequency spectrum and identify any spurious tones or phase noise issues. Consult the datasheet and application notes for troubleshooting guides and tips.
  • The ADF4112BRU has a maximum junction temperature of 150°C. To ensure reliable operation, ensure good thermal conductivity between the device and the PCB, use a heat sink if necessary, and avoid overheating the device. Follow the recommended thermal management guidelines in the datasheet and application notes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADF4112BRU Overview

Use the download button to access the ADF4112BRU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF41, or try a keyword search, such as PLL or Frequency Synthesis Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
