ADF4113HVBCPZ - Analog Devices

Description: PLL Frequency Synthesizer Single 200MHz ADF4113HVBCPZ, PLL Frequency Synthesizer, 20-Pin CP 20 1

Download ADF4113HVBCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

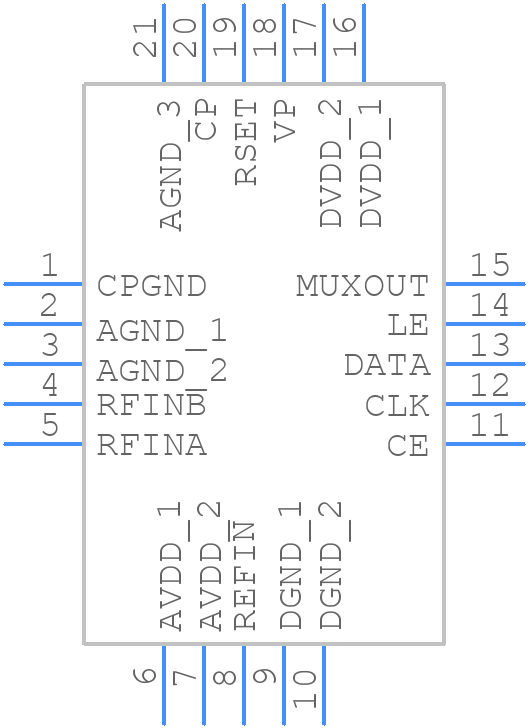

ADF4113HVBCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4113HVBCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-20-6 (LFCSP)
click to zoom
3D Models
ADF4113HVBCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-20-6 (LFCSP)
click to zoom

ADF4113HVBCPZ Details

  • Manufacturer Part Number:

    ADF4113HVBCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, LEAD FREE, MO-220VGGD-1, LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-6

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    6-BIT SWALLOW COUNTER:0 TO 63

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    11 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ADF4113HVBCPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADF4113HVBCPZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the voltage regulator. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog ground and another for the digital ground.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves setting the device to its default state, then adjusting the phase detector frequency and the charge pump current to achieve the desired VCO frequency. It's also important to ensure the loop filter is properly designed and implemented.
  • When selecting loop filter components, consider the desired loop bandwidth, phase margin, and stability. Choose components that provide a flat frequency response and minimal attenuation. The datasheet provides guidelines for selecting the loop filter components, and simulation tools can be used to optimize the design.
  • To troubleshoot issues with the ADF4113HVBCPZ, start by verifying the power supply voltage and ensuring it's within the recommended range. Check the PCB layout for noise and signal integrity issues. Use a spectrum analyzer to measure the output frequency and identify any spurious signals. Consult the datasheet and application notes for guidance on troubleshooting common issues.
  • The ADF4113HVBCPZ has a maximum junction temperature of 150°C. Ensure reliable operation over temperature by providing adequate heat sinking, using a thermally conductive PCB material, and minimizing power consumption. Follow the thermal management guidelines in the datasheet and application notes to ensure reliable operation.
