ADF4116BRUZ-REEL - Analog Devices

Description: Clock/Frequency Synthesizer (RF) IC 550MHz 1 16-TSSOP (0.173", 4.40mm Width)

Download ADF4116BRUZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

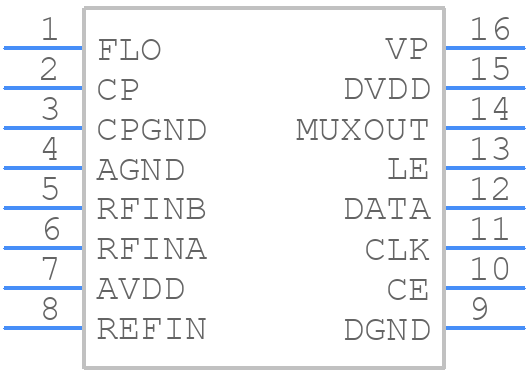

ADF4116BRUZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4116BRUZ-REEL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16
click to zoom
3D Models
ADF4116BRUZ-REEL - Analog Devices - 3D model - Small Outline Packages - RU-16
click to zoom

ADF4116BRUZ-REEL Details

  • Manufacturer Part Number:

    ADF4116BRUZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    5.5 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADF4116BRUZ-REEL Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane, separate analog and digital power planes, and a star-configuration for the power supply is recommended. Additionally, keep the PLL loop filter components close to the device and use a low-ESR capacitor for the VCO tuning voltage.
  • Ensure a stable and noise-free power supply, with a minimum of 2.7V and a maximum of 5.5V for VCC. Decouple the power supply with a 10uF capacitor and a 100nF capacitor in parallel. Also, ensure the voltage on the VCO tuning pin (VTUNE) is within the recommended range of 0.5V to 2.5V.
  • Use a 3-wire serial interface (SPI) to program the device. Ensure the serial clock frequency is between 100 kHz and 20 MHz, and the serial data is clocked in on the rising edge of the clock signal. Also, ensure the chip select (CS) signal is low during programming and high during normal operation.
  • Check the PLL loop filter component values and ensure they are within the recommended range. Verify the VCO tuning voltage is within the recommended range and the PLL is not over-tuned. Also, check the reference clock frequency and ensure it is within the recommended range. If issues persist, try adjusting the PLL loop filter component values or the VCO tuning voltage.
  • Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. Avoid blocking airflow around the device and ensure the PCB is designed to dissipate heat efficiently. Also, consider using a thermal interface material (TIM) to improve heat transfer between the device and the heat sink.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADF4116BRUZ-REEL Overview

Use the download button to access the ADF4116BRUZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF41, or try a keyword search, such as PLL or Frequency Synthesis Circuits
