ADF4116BRUZ-REEL7 - Analog Devices

Description: Clock Generator 100MHz to 300MHz-IN 200MHz-OUT 16-Pin TSSOP T/R

Download ADF4116BRUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

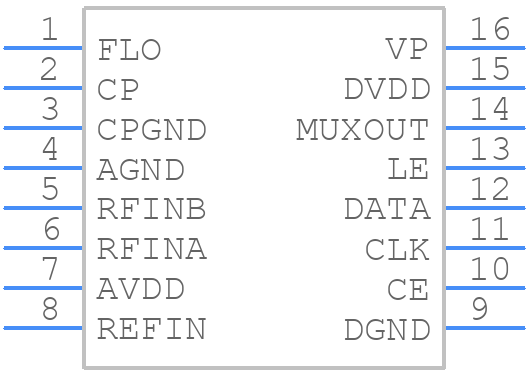

ADF4116BRUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4116BRUZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-16 (TSSOP)--
click to zoom
3D Models
ADF4116BRUZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RU-16 (TSSOP)--
click to zoom

ADF4116BRUZ-REEL7 Details

  • Manufacturer Part Number:

    ADF4116BRUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    5.5 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADF4116BRUZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADF4116BRUZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog ground and another for the digital ground.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, and make sure to use a high-quality reference clock source. Additionally, consider using the ADF4116BRUZ-REEL7's built-in calibration features, such as the phase detector output, to fine-tune the device for your specific application.
  • The ADF4116BRUZ-REEL7 is rated for operation from -40°C to 125°C. To ensure reliable operation, make sure to provide adequate heat sinking, avoid thermal gradients, and follow proper PCB design and layout guidelines. Additionally, consider using thermal simulation tools to model the device's thermal performance in your specific application.
  • To troubleshoot issues with the ADF4116BRUZ-REEL7, start by verifying the device's power supply and clock input signals. Check for proper PCB layout and decoupling, and ensure that the device is properly configured and calibrated. Use oscilloscopes and spectrum analyzers to measure the device's output and identify any anomalies. Consult the datasheet and application notes for troubleshooting guides and FAQs.
  • To ensure EMI and RFI compliance, follow proper PCB design and layout guidelines, use shielding and filtering as necessary, and consider using EMI-absorbing materials. Additionally, ensure that the device is properly configured and calibrated, and that the system meets regulatory requirements such as FCC and CE.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADF4116BRUZ-REEL7 Overview

Use the download button to access the ADF4116BRUZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF41, or try a keyword search, such as PLL or Frequency Synthesis Circuits
