A good PCB layout for the ADF4117BRUZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the voltage regulator. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog ground and another for the digital ground.
To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves setting the device to its default state, then adjusting the phase detector frequency and the charge pump current to achieve the desired VCO frequency. It's also important to ensure the device is operated within its recommended operating conditions.
When selecting external components for the ADF4117BRUZ-RL7, consider the frequency range, output power, and impedance matching requirements. Choose components with low equivalent series resistance (ESR) and high quality factor (Q) to minimize losses and ensure optimal performance. Additionally, ensure the components are compatible with the device's operating frequency and voltage range.
To troubleshoot common issues with the ADF4117BRUZ-RL7, start by verifying the device's operating conditions, including the power supply voltage, temperature, and input frequencies. Check for proper PCB layout and component selection, and ensure the device is properly calibrated. Use a spectrum analyzer to identify spurious outputs and adjust the device's settings accordingly. If issues persist, consult the datasheet and application notes for further guidance.
The ADF4117BRUZ-RL7 has a maximum junction temperature of 150°C. To ensure reliable operation, maintain a safe operating temperature by providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device. Monitor the device's temperature and adjust the operating conditions accordingly to prevent overheating.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADF4117BRUZ-RL7 Overview

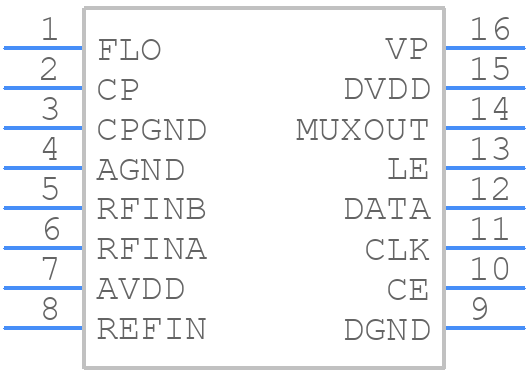

Use the download button to access the ADF4117BRUZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF41,
or try a keyword search, such as PLL or Frequency Synthesis Circuits
