- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ADF4118YRUZ
- Part Number ADF4118YRUZ
- Manufacturer Analog Devices
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - RU-16
- Released Date Oct 16, 2024
- Last Modified Date Oct 16, 2024 2:26 PM UTC
- Pinout / Pin List Click Here (Member Only)
ADF4118YRUZ Details
-
Manufacturer Part Number:
ADF4118YRUZ
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
TSSOP
-
Package Description:
ROHS COMPLIANT, MO-153AB, TSSOP-16
-
Pin Count:
16
-
Manufacturer Package Code:
RU-16
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
ADF4118YRUZ Frequently Asked Questions (FAQs)
-
A good PCB layout for the ADF4118YRUZ involves keeping the analog and digital sections separate, using a solid ground plane, and minimizing the length of the clock signal traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane. The datasheet provides a recommended PCB layout, but it's also recommended to consult with Analog Devices' application notes and PCB layout guidelines for more detailed information.
-
The ADF4118YRUZ can be programmed using a 3-wire serial interface. The device has a 24-bit frequency register that can be written to using a serial interface. The frequency register is divided into three parts: the integer word, the fractional word, and the control word. The integer word sets the integer part of the frequency, the fractional word sets the fractional part of the frequency, and the control word sets the phase detector frequency and other control functions. The datasheet provides a detailed description of the frequency register and how to program it to generate a specific frequency.
-
The ADF4118YRUZ can generate frequencies up to 4.5 GHz. However, the maximum frequency is dependent on the reference clock frequency and the PLL loop bandwidth. The datasheet provides a detailed description of the frequency range and the limitations of the device.
-
The ADF4118YRUZ has a lock detect output that indicates when the PLL is locked to the desired frequency. The lock detect output can be connected to a microcontroller or other logic circuit to monitor the lock status. Additionally, the device has a programmable lock detect threshold that allows the user to set the desired lock detect criteria. The datasheet provides a detailed description of the lock detect function and how to use it to ensure that the device is locked to the desired frequency.
-
The power consumption of the ADF4118YRUZ depends on the operating frequency, the supply voltage, and the output power. The datasheet provides a detailed description of the power consumption and how it varies with different operating conditions. Typically, the power consumption is around 350 mW at 3.3 V supply voltage and 2.5 GHz output frequency.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
ADF4118YRUZ Overview

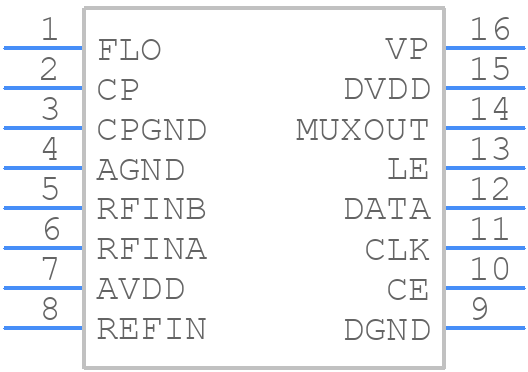

Use the download button to access the ADF4118YRUZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF41,
or try a keyword search, such as PLL or Frequency Synthesis Circuits
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
