ADF4152HVBCPZ-RL7 - Analog Devices

Description: ANALOG DEVICES - ADF4152HVBCPZ-RL7 - PLL SYNTHESIZER, 5GHZ, LFCSP-32

Download ADF4152HVBCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

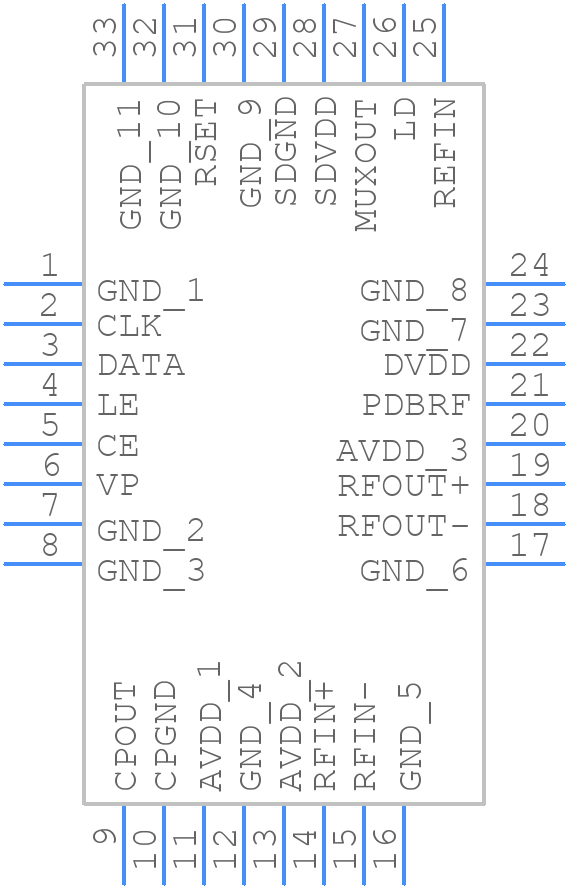

ADF4152HVBCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4152HVBCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-11 (LFCSP)
click to zoom
3D Models
ADF4152HVBCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-11 (LFCSP)
click to zoom

ADF4152HVBCPZ-RL7 Details

  • Manufacturer Part Number:

    ADF4152HVBCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-11

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-07-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    PHASE LOCKED LOOP

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADF4152HVBCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADF4152HVBCPZ-RL7 involves keeping the RF signal paths as short as possible, using a solid ground plane, and separating the analog and digital sections of the board. Additionally, it's recommended to use a 4-layer board with a dedicated layer for the RF signal, a layer for the analog power supply, a layer for the digital power supply, and a layer for the ground plane.
  • To optimize the loop filter design for the ADF4152HVBCPZ-RL7, you should consider the PLL bandwidth, phase margin, and loop filter component values. A good starting point is to use the recommended loop filter values in the datasheet, and then adjust them based on your specific application requirements. You can also use simulation tools such as ADIsimPLL to optimize the loop filter design.
  • The maximum frequency deviation that can be achieved with the ADF4152HVBCPZ-RL7 depends on the specific application and the PLL configuration. However, in general, the ADF4152HVBCPZ-RL7 can achieve frequency deviations of up to ±100 kHz with a modulation bandwidth of up to 100 kHz.
  • To ensure that the ADF4152HVBCPZ-RL7 is properly calibrated and configured for your specific application, you should follow the recommended calibration procedure in the datasheet, which involves setting the correct charge pump current, loop filter component values, and PLL configuration. You can also use the ADF4152HVBCPZ-RL7 evaluation board and software development tools to simplify the calibration and configuration process.
  • When using the ADF4152HVBCPZ-RL7 in a high-power application, it's essential to consider thermal management to prevent overheating and ensure reliable operation. Key considerations include using a heat sink, thermal interface material, and a PCB design that allows for good heat dissipation. You should also ensure that the device is operated within its recommended operating temperature range.
