ADF4152HVBCPZ - Analog Devices

Description: Clock Generator 10MHz to 300MHz-IN 750MHz-OUT 32-Pin LFCSP EP Tray

Download ADF4152HVBCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

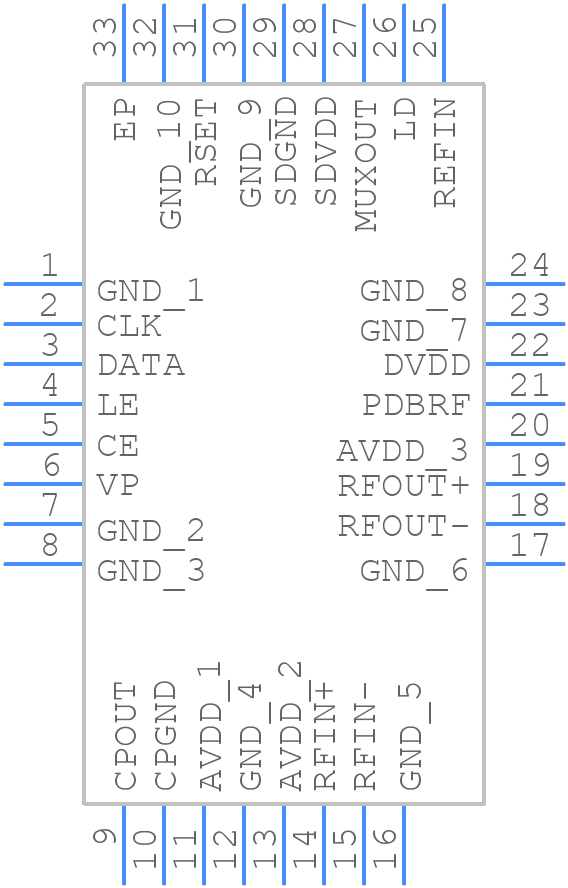

ADF4152HVBCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4152HVBCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-11 (LFCSP)
click to zoom
3D Models
ADF4152HVBCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-11 (LFCSP)
click to zoom

ADF4152HVBCPZ Details

  • Manufacturer Part Number:

    ADF4152HVBCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-11

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-07-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    PHASE LOCKED LOOP

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADF4152HVBCPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADF4152HVBCPZ involves keeping the analog and digital sections separate, using a solid ground plane, and minimizing the length of the clock input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog power supply and another for the digital power supply. The datasheet provides a recommended PCB layout, but it's also recommended to consult with Analog Devices' application notes and layout guidelines for more detailed information.
  • To optimize the ADF4152HVBCPZ for low phase noise performance, it's recommended to use a high-quality crystal oscillator, ensure a stable power supply, and minimize the noise on the clock input. Additionally, the device's internal voltage regulator can be bypassed using an external low-noise voltage regulator to further reduce phase noise. It's also recommended to use a low-noise reference clock and to optimize the device's loop filter components for the specific application.
  • The ADF4152HVBCPZ is a fractional-N PLL synthesizer that can generate frequencies up to 4.4 GHz. However, the maximum frequency range that can be achieved depends on the specific application and the quality of the external components used. In general, the device can generate frequencies up to 3.5 GHz with a high-quality crystal oscillator and optimized loop filter components.
  • The ADF4152HVBCPZ can be programmed using a 3-wire serial interface (SPI) or a parallel interface. The device has a set of registers that control the frequency, modulation scheme, and other parameters. The datasheet provides a detailed description of the register map and the programming sequence. Additionally, Analog Devices provides a software development kit (SDK) that includes a programming GUI and example code to help users program the device.
  • The power consumption of the ADF4152HVBCPZ depends on the specific application and the operating frequency. The device has a typical power consumption of 450 mW at 3.3 V supply voltage. To minimize power consumption, it's recommended to use a low-power mode, reduce the operating frequency, and optimize the power supply voltage. Additionally, the device's internal voltage regulator can be bypassed using an external low-power voltage regulator to further reduce power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADF4152HVBCPZ Overview

Use the download button to access the ADF4152HVBCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF41, or try a keyword search, such as PLL or Frequency Synthesis Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
