ADF4153BCPZ - Analog Devices

Description: ADF4153BCPZ, PLL Frequency Synthesizer, 20-Pin CP 20

Download ADF4153BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

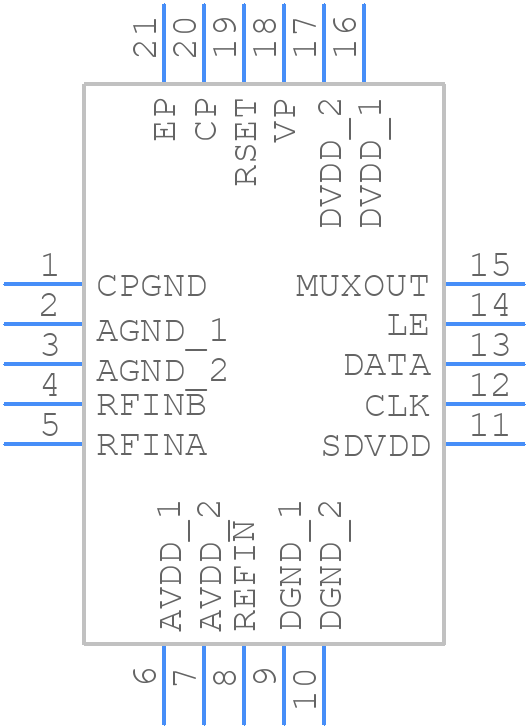

ADF4153BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4153BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-20-6 (LFCSP)
click to zoom
3D Models
ADF4153BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-20-6 (LFCSP)
click to zoom

ADF4153BCPZ Details

  • Manufacturer Part Number:

    ADF4153BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, MO-220VGGD-1, LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-6

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    24 mA

  • Supply Voltage-Max (Vsup):

    3.3 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ADF4153BCPZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the PLL loop filter components close to the device and use a star-configuration for the power supply lines to minimize noise.
  • The charge pump current (I_CP) should be set based on the phase detector frequency (f_PD) and the loop bandwidth (BW). A good starting point is I_CP = 2.5mA for f_PD = 10MHz and BW = 100kHz. Adjust I_CP to achieve the desired phase noise performance.
  • A low-dropout linear regulator (LDO) with a low noise output (e.g., ADP151 or ADP160) is recommended to power the ADF4153BCPZ. Ensure the VRM can supply the required current and has a low output voltage noise.
  • Use a combination of ceramic and electrolytic capacitors to bypass the power supply lines. Place a 100nF ceramic capacitor close to the device and a 10uF electrolytic capacitor further away. Ensure the capacitors are connected to a solid ground plane.
  • The maximum frequency deviation is ±50ppm for the ADF4153BCPZ. This means the output frequency can deviate by up to ±50ppm from the nominal frequency due to temperature changes, voltage variations, and other factors.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADF4153BCPZ Overview

Use the download button to access the ADF4153BCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF41, or try a keyword search, such as PLL or Frequency Synthesis Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
