ADF4153YCPZ - Analog Devices

Description: Analog Devices ADF4153YCPZ, PLL Frequency Synthesizer, Maximum of 1750 MHz, 20-Pin LFCSP VQ

Download ADF4153YCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

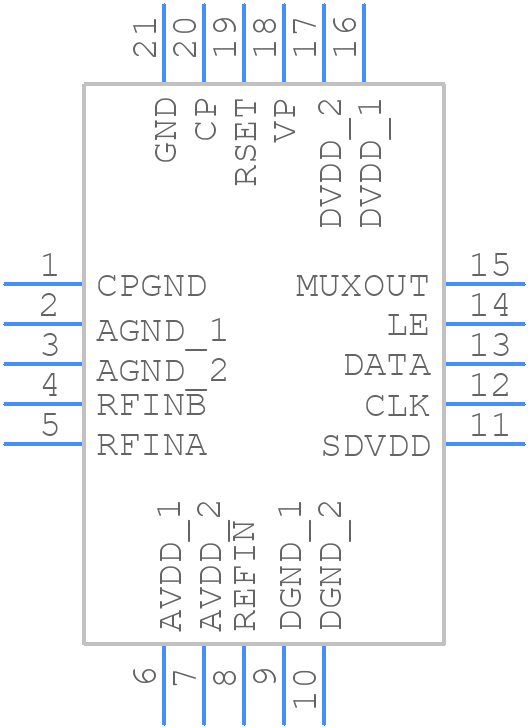

ADF4153YCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4153YCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-20-1 (LFCSP)
click to zoom
3D Models
ADF4153YCPZ - Analog Devices - 3D model - Quad Flat No-Lead - CP-20-1 (LFCSP)
click to zoom

ADF4153YCPZ Details

  • Manufacturer Part Number:

    ADF4153YCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, MO-220VGGD-1, LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    24 mA

  • Supply Voltage-Max (Vsup):

    3.3 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADF4153YCPZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VCC, and then the digital inputs. This ensures that the internal voltage regulators are powered up correctly and the device operates reliably.
  • The loop filter design should be optimized based on the specific application requirements, such as phase noise, spurious performance, and lock time. Analog Devices provides a Loop Filter Design Tool to help with this process. Additionally, the datasheet provides guidelines for loop filter component selection and optimization.
  • The maximum frequency deviation that can be achieved with the ADF4153YCPZ is ±100 kHz, which is limited by the 14-bit R-counter and the 31-bit N-counter. However, this can be extended to ±200 kHz by using the device's built-in frequency modulation feature.
  • The ADF4153YCPZ has a built-in frequency band select feature that allows the user to select one of four frequency bands (low, mid-low, mid-high, and high). The correct frequency band can be selected by programming the appropriate register bits. Additionally, the device provides a frequency band indicator output that can be used to monitor the operating frequency band.
  • A good PCB layout and grounding technique is critical for the ADF4153YCPZ to operate reliably and achieve optimal performance. Analog Devices recommends a 4-layer PCB with a solid ground plane, and the use of vias to connect the ground plane to the device's ground pins. Additionally, the device's sensitive analog signals should be kept away from noisy digital signals.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADF4153YCPZ Overview

Use the download button to access the ADF4153YCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF41, or try a keyword search, such as PLL or Frequency Synthesis Circuits
