ADF4153YRUZ - Analog Devices

Description: Analog Devices ADF4153YRUZ, PLL Frequency Synthesizer, Maximum of 1750 MHz, 16-Pin TSSOP

Download ADF4153YRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

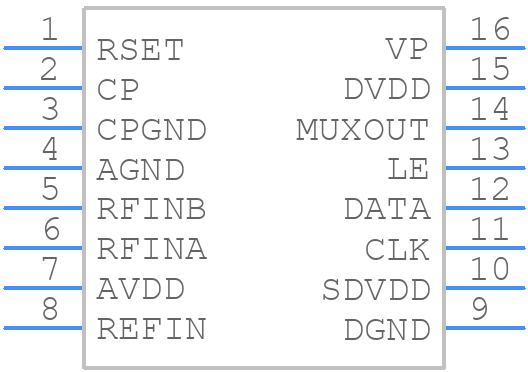

ADF4153YRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4153YRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Thin Shrink Small Outline Package-
click to zoom
3D Models
ADF4153YRUZ - Analog Devices - 3D model - Small Outline Packages - 16-Lead Thin Shrink Small Outline Package-
click to zoom

ADF4153YRUZ Details

  • Manufacturer Part Number:

    ADF4153YRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    24 mA

  • Supply Voltage-Max (Vsup):

    3.3 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADF4153YRUZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADF4153YRUZ involves keeping the analog and digital sections separate, using a solid ground plane, and minimizing the length of the clock input traces. Additionally, it's recommended to use a low-ESR capacitor for the VCO tuning voltage and to decouple the power supplies with 10uF and 100nF capacitors.
  • The ADF4153YRUZ can be programmed using a 3-wire serial interface. The desired frequency is calculated using the equation f_RF = (f_PFD x INT + f_FRAC) / R, where f_PFD is the phase detector frequency, INT is the integer part of the frequency division, and f_FRAC is the fractional part. The calculated values are then written to the device's registers using the serial interface.
  • The maximum frequency deviation of the ADF4153YRUZ's VCO is ±150MHz, which is achieved by applying a tuning voltage of 0V to 2.5V to the VTUNE pin.
  • The ADF4153YRUZ has a lock detect output (LD) that indicates when the PLL is locked to the desired frequency. The LD pin goes high when the PLL is locked and the frequency is within ±10% of the desired frequency. You can also use the device's serial interface to read the lock detect status register.
  • The power consumption of the ADF4153YRUZ depends on the operating frequency and the supply voltage. Typically, the device consumes around 55mA from a 3.3V supply when operating at 2.5GHz. However, this value can vary depending on the specific application and operating conditions.
