Part Image

ADF4154BCPZ-RL7 - Analog Devices

Description: Phase Locked Loops - PLL Fractional-N Freq Synthesizer

Download ADF4154BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

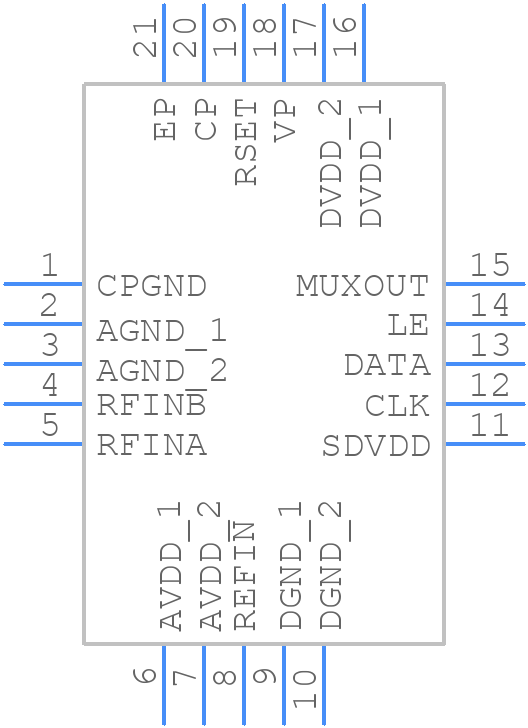

Symbol
ADF4154BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4154BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-20-6)
click to zoom
3D Models
ADF4154BCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-20-6)
click to zoom

ADF4154BCPZ-RL7 Details

  • Manufacturer Part Number:

    ADF4154BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, LEAD FREE, MO-220VGGD-1, LFCSP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    CP-20-6

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    24 mA

  • Supply Voltage-Max (Vsup):

    3.3 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ADF4154BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds. Use short, direct traces for the clock and data lines, and avoid crossing signal lines over the ground plane.
  • Use a low-ESR capacitor (e.g., 0.1 μF) between VDD and GND, and a 10 μF capacitor between AVDD and AGND. Place these capacitors as close to the device as possible. Also, ensure that the power supply is clean and well-regulated, with minimal noise and ripple.
  • The maximum frequency deviation is dependent on the PLL loop bandwidth and the modulation frequency. Typically, the maximum frequency deviation is around 10% to 20% of the carrier frequency, but this can be increased with careful design and optimization of the PLL loop filter.
  • Use the ADF4154BCPZ-RL7's serial interface to program the device. Set the desired frequency and modulation scheme using the appropriate registers and commands. Refer to the datasheet and programming guide for specific details on register settings and programming sequences.
  • The typical current consumption of the ADF4154BCPZ-RL7 is around 30 mA to 40 mA, depending on the operating frequency and modulation scheme. To minimize power consumption, use the lowest possible supply voltage, reduce the operating frequency, and use the device's power-down mode when not in use.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADF4154BCPZ-RL7 Overview

Use the download button to access the ADF4154BCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF41, or try a keyword search, such as PLL or Frequency Synthesis Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
