ADF4154BRUZ-RL7 - Analog Devices

Description: Phase Locked Loops - PLL Fractional-N Freq Synthesizer

Download ADF4154BRUZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

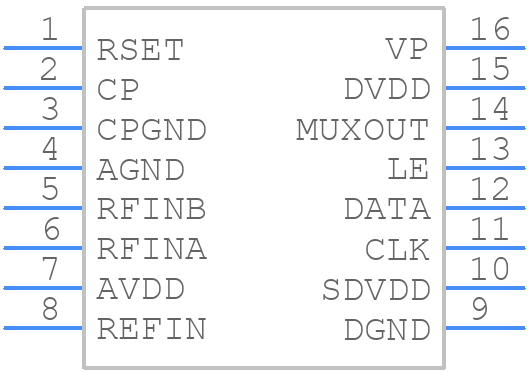

Symbol
ADF4154BRUZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4154BRUZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RU-16)
click to zoom
3D Models
ADF4154BRUZ-RL7 - Analog Devices - 3D model - Small Outline Packages - (RU-16)
click to zoom

ADF4154BRUZ-RL7 Details

  • Manufacturer Part Number:

    ADF4154BRUZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, MO-153AB, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RU-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    24 mA

  • Supply Voltage-Max (Vsup):

    3.3 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADF4154BRUZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADF4154BRUZ-RL7 involves keeping the RF signal paths as short as possible, using a solid ground plane, and minimizing the use of vias. It's also recommended to use a separate analog and digital ground plane, and to keep the analog and digital signals separate to minimize noise coupling.
  • Optimizing the loop filter design for the ADF4154BRUZ-RL7 involves selecting the correct values for the resistors and capacitors in the loop filter to achieve the desired phase noise and spurious performance. This can be done using the ADIsimPLL tool from Analog Devices, which provides a simulation environment for designing and optimizing PLL loop filters.
  • The ADF4154BRUZ-RL7 can operate up to a maximum frequency of 4.4 GHz, but the actual frequency range that can be achieved depends on the specific application and the performance of the external components used. In general, the device can be used to generate frequencies up to 4.4 GHz, but the phase noise and spurious performance may degrade at higher frequencies.
  • The ADF4154BRUZ-RL7 can be programmed using a microcontroller through a serial interface such as SPI or I2C. The device has a 32-bit register map that can be accessed through the serial interface, allowing the user to configure the device's settings and parameters. The specific programming sequence and protocol will depend on the microcontroller and the application.
  • The typical power consumption of the ADF4154BRUZ-RL7 is around 55 mA at a supply voltage of 3.3 V, but this can vary depending on the specific application and the operating frequency. The device has a power-down mode that can be used to reduce power consumption when it is not in use.
