ADF4158WCCPZ - Analog Devices

Description: Clock Generator 10MHz to 6.1GHz-IN Automotive 24-Pin LFCSP EP Tray

Download ADF4158WCCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

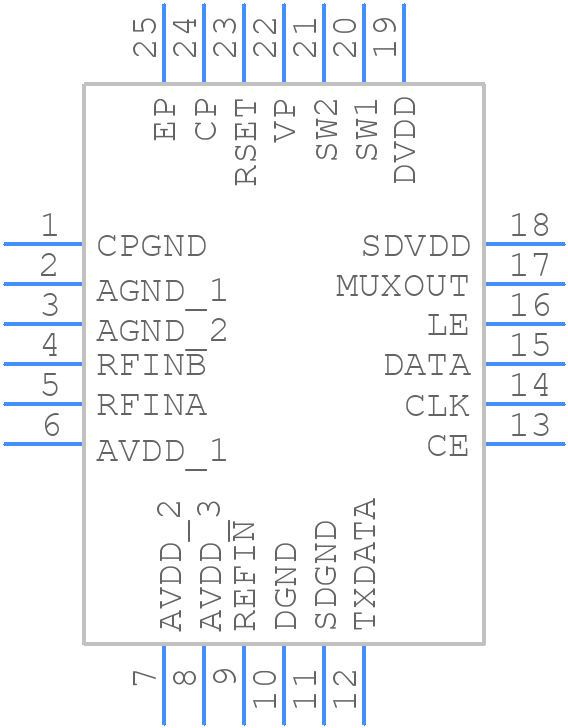

Symbol
ADF4158WCCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4158WCCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-Lead Lead Frame Chip Scale Package [LFCSP]-
click to zoom
3D Models
ADF4158WCCPZ - Analog Devices - 3D model - Quad Flat No-Lead - 24-Lead Lead Frame Chip Scale Package [LFCSP]-
click to zoom

ADF4158WCCPZ Details

  • Manufacturer Part Number:

    ADF4158WCCPZ

  • Source Url Status Check Date:

    2013-05-01 14:56:35.841

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-7

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-PQCC-N24

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Supply Current-Max (Isup):

    32 mA

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

ADF4158WCCPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADF4158WCCPZ involves keeping the RF signal paths as short as possible, using a solid ground plane, and separating the analog and digital sections of the board. Additionally, it's recommended to use a 4-layer board with a dedicated layer for the RF signal, a layer for the analog power supply, a layer for the digital power supply, and a layer for the ground plane.
  • To optimize the ADF4158WCCPZ for low phase noise performance, it's recommended to use a high-quality crystal oscillator, ensure a stable power supply, and minimize the noise on the charge pump output. Additionally, the device's internal voltage regulator can be bypassed with an external low-noise voltage regulator to further reduce phase noise.
  • The ADF4158WCCPZ can generate frequencies up to 4.4 GHz, but the maximum frequency range depends on the specific application and the external components used. In general, the device can be used to generate frequencies up to 3.5 GHz with a suitable external loop filter and a high-quality voltage-controlled oscillator (VCO).
  • The ADF4158WCCPZ can be programmed using a 3-wire serial interface. The device has a 32-bit R-counter, a 15-bit N-counter, and a 12-bit modulus counter that need to be programmed to generate a specific frequency. The programming sequence involves writing the desired values to the corresponding registers using the serial interface.
  • The typical power consumption of the ADF4158WCCPZ is around 55 mA at 3.3 V supply voltage, but this can vary depending on the specific application and the frequency of operation. The device has a power-down mode that can be used to reduce power consumption when it's not in use.
