ADF4159CCPZ-RL7 - Analog Devices

Description: Clock Generator 500MHz to 13GHz-IN 2000MHz-OUT 24-Pin LFCSP EP T/R

Download ADF4159CCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

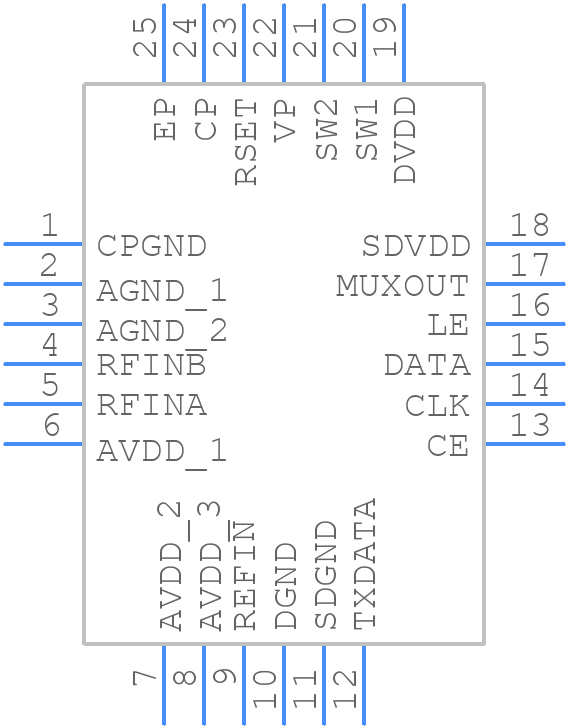

ADF4159CCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4159CCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-24-10)_2022
click to zoom
3D Models
ADF4159CCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-24-10)_2022
click to zoom

ADF4159CCPZ-RL7 Details

  • Manufacturer Part Number:

    ADF4159CCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-10

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    PHASE DETECTOR

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    40 mA

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

ADF4159CCPZ-RL7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the PLL loop filter components close to the device and use a low-ESR capacitor for the VCO tuning voltage.
  • Ensure a clean power-up sequence by applying power to VCC before applying a clock signal to the device. Also, ensure that the device is properly initialized by setting the correct register values and waiting for the lock detect signal to go high.
  • Use a 3-wire serial interface (SPI) to program the device's registers. Ensure that the clock signal is stable and within the recommended frequency range, and that the chip select signal is properly asserted and de-asserted.
  • Optimize the PLL loop filter component values and ensure that the VCO tuning voltage is properly filtered and decoupled. Also, minimize the noise on the reference clock input and ensure that the device is operated within the recommended temperature range.
  • Ensure good airflow around the device and use a thermal pad or heat sink to dissipate heat. Avoid blocking the airflow around the device and ensure that the PCB is designed to dissipate heat efficiently.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADF4159CCPZ-RL7 Overview

Use the download button to access the ADF4159CCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF41, or try a keyword search, such as PLL or Frequency Synthesis Circuits
