ADF4159CCPZ - Analog Devices

Description: Analog Devices, ADF4159CCPZ Analog Devices ADF4159CCPZ, PLL Frequency Synthesizer, Maximum of 12002 MHz, 24-Pin LFCSP

Download ADF4159CCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

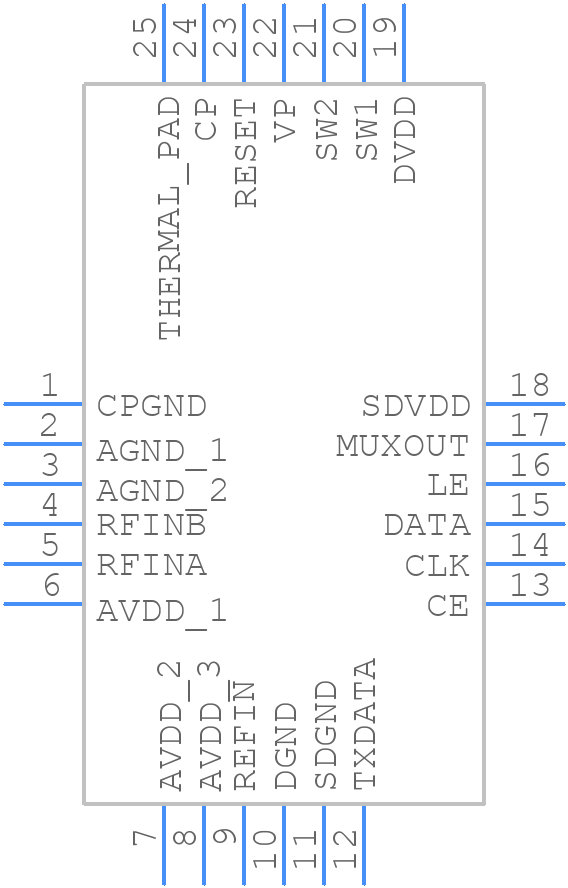

ADF4159CCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4159CCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP_WQ (CP-24-10)
click to zoom
3D Models
ADF4159CCPZ - Analog Devices - 3D model - Quad Flat No-Lead - LFCSP_WQ (CP-24-10)
click to zoom

ADF4159CCPZ Details

  • Manufacturer Part Number:

    ADF4159CCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-10

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    PHASE DETECTOR

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    40 mA

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

ADF4159CCPZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the PLL loop filter components close to the device and use a star-ground configuration to minimize noise.
  • The charge pump current (I_CP) should be set based on the phase detector frequency (f_PD) and the loop bandwidth (LBW). A good starting point is I_CP = 2.5mA for f_PD = 10MHz and LBW = 100kHz. Adjust I_CP to achieve the desired phase noise performance.
  • The maximum frequency deviation is dependent on the reference frequency and the modulus value. For a 10MHz reference frequency, the maximum frequency deviation is approximately ±20MHz for a modulus value of 4096.
  • Ensure that the power supply voltage (VCC) is stable and within the recommended range (2.7V to 3.3V). Initialize the device by setting the reset pin (RST) low, then high, and finally, configure the device using the serial interface (SPI).
  • Use a common reference clock and synchronize the devices using the sync pin (SYNC). Ensure that the devices are configured to use the same modulus value and phase detector frequency.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADF4159CCPZ Overview

Use the download button to access the ADF4159CCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF41, or try a keyword search, such as PLL or Frequency Synthesis Circuits
