ADF4169CCPZ-RL7 - Analog Devices

Description: Clock Generator 10MHz to 13.5GHz-IN 2000MHz-OUT 24-Pin LFCSP EP T/R

Download ADF4169CCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

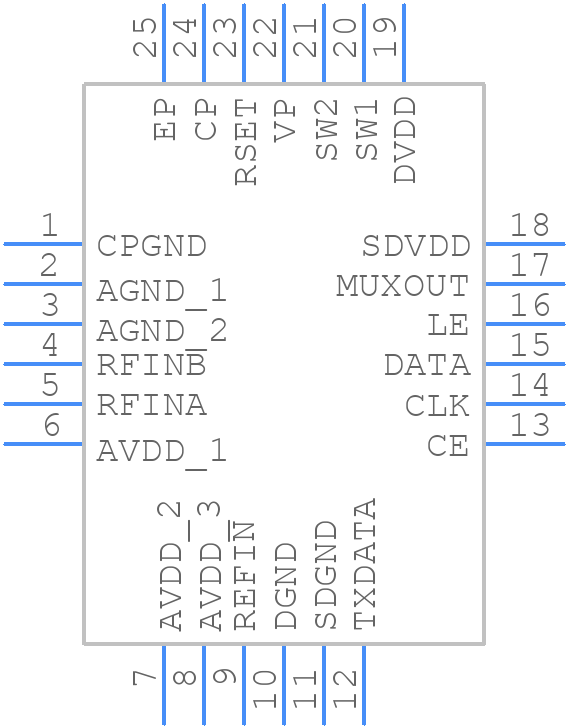

ADF4169CCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4169CCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-24-10)LFCSP
click to zoom
3D Models
ADF4169CCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - (CP-24-10)LFCSP
click to zoom

ADF4169CCPZ-RL7 Details

  • Manufacturer Part Number:

    ADF4169CCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-10

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.45 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADF4169CCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADF4169CCPZ-RL7 involves keeping the RF signal paths as short as possible, using a solid ground plane, and minimizing the use of vias. It's also recommended to use a 4-layer PCB with a dedicated layer for the RF signal, a layer for the ground plane, and two layers for the power supply and digital signals.
  • To optimize the performance of the ADF4169CCPZ-RL7, ensure that the device is operated within its recommended operating conditions, use a high-quality crystal oscillator, and optimize the loop filter components for the desired frequency range. Additionally, minimize the noise on the power supply lines and ensure good thermal management.
  • The maximum frequency deviation that can be achieved with the ADF4169CCPZ-RL7 depends on the specific application and the desired modulation scheme. However, the device can support frequency deviations of up to ±100 kHz or more, depending on the configuration and the quality of the crystal oscillator.
  • Yes, the ADF4169CCPZ-RL7 can be used in a PLL configuration. The device has a built-in PLL that can be used to lock the output frequency to a reference frequency. The PLL can be configured to operate in a variety of modes, including integer-N, fractional-N, and modulus modes.
  • The typical current consumption of the ADF4169CCPZ-RL7 is around 35 mA, but this can vary depending on the specific application, the frequency of operation, and the power supply voltage. It's recommended to consult the datasheet and to perform thorough testing to determine the actual current consumption in your specific design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADF4169CCPZ-RL7 Overview

Use the download button to access the ADF4169CCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF41, or try a keyword search, such as PLL or Frequency Synthesis Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
