ADF4193BCPZ - Analog Devices

Description: Low Phase Noise, Fast Settling PLL Frequency Synthesizer

Download ADF4193BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

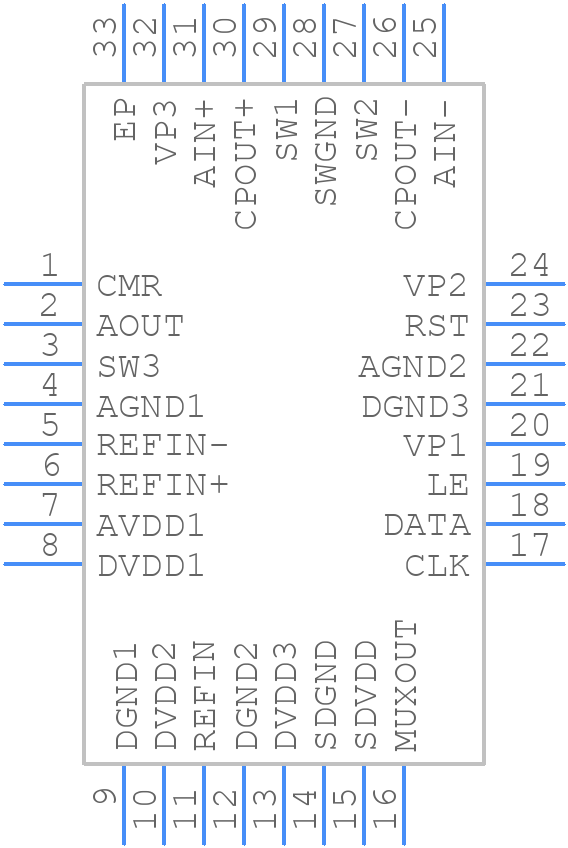

ADF4193BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4193BCPZ - Analog Devices PCB footprint - Other - Other - QFN50P500X500X80-33N
click to zoom
3D Models
ADF4193BCPZ - Analog Devices - 3D model - Other - QFN50P500X500X80-33N
click to zoom

ADF4193BCPZ Details

  • Manufacturer Part Number:

    ADF4193BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    5 X 5 MM, ROHS COMPLIANT, MO-220VHHD-2, LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-7

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    27 mA

  • Supply Voltage-Max (Vsup):

    3.3 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

ADF4193BCPZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the PLL loop filter components close to the device and use a low-ESR capacitor for the VCC pin. Avoid routing digital signals near the PLL loop filter components.
  • Use the ADIsimPLL tool or a similar PLL design tool to optimize the loop filter component values based on your specific application requirements, such as frequency range, phase noise, and lock time.
  • The maximum frequency deviation is dependent on the PLL loop bandwidth and the VCO tuning range. Typically, a frequency deviation of up to ±10% of the center frequency can be achieved with the ADF4193BCPZ.
  • Use a low-dropout linear regulator or a switching regulator with a low noise output to power the ADF4193BCPZ. Add decoupling capacitors (e.g., 100 nF and 10 μF) close to the VCC pin to filter out noise and ensure a stable power supply.
  • Use a 3-wire serial interface (SPI) to program the ADF4193BCPZ. Ensure that the SPI clock frequency is within the recommended range (typically up to 10 MHz) and that the interface is properly terminated to prevent signal reflections.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ADF4193BCPZ Overview

Use the download button to access the ADF4193BCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF41, or try a keyword search, such as PLL or Frequency Synthesis Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
