ADF4196BCPZ - Analog Devices

Description: Low Phase Noise, Fast Settling 6 GHz PLL Frequency Synthesizer

Download ADF4196BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

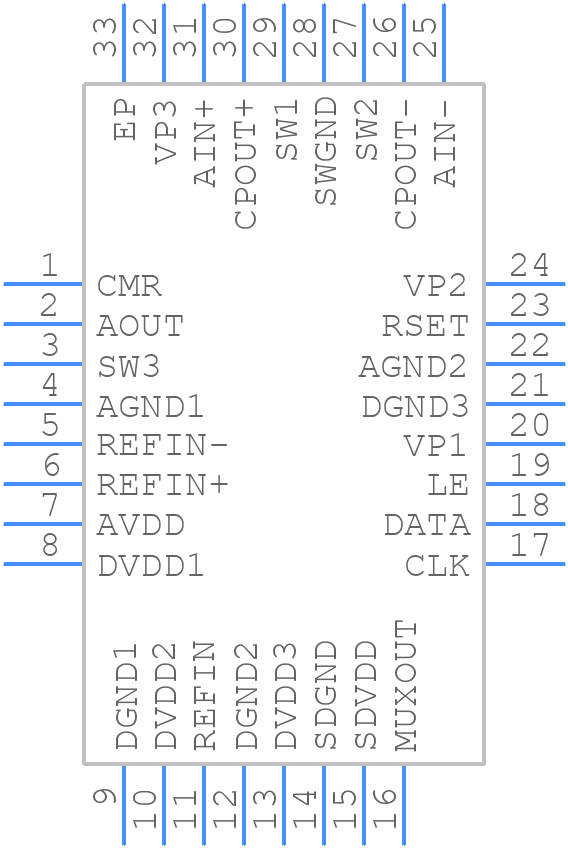

Symbol
ADF4196BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4196BCPZ - Analog Devices PCB footprint - Other - Other - QFN50P500X500X100-33N
click to zoom
3D Models
ADF4196BCPZ - Analog Devices - 3D model - Other - QFN50P500X500X100-33N
click to zoom

ADF4196BCPZ Details

  • Manufacturer Part Number:

    ADF4196BCPZ

  • Source Url Status Check Date:

    2013-05-01 14:56:35.886

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    5 X 5 MM, ROHS COMPLIANT, MO-220VHHD-2, LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-7

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    SELECTABLE 4/5 OR 8/9 PRESCALER

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    30 mA

  • Supply Voltage-Max (Vsup):

    3.3 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADF4196BCPZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADF4196BCPZ involves keeping the RF signal paths as short as possible, using a solid ground plane, and minimizing the use of vias. It's also recommended to use a 4-layer PCB with a dedicated layer for the RF signal, a layer for the power supply, and two layers for the ground plane.
  • To optimize the performance of the ADF4196BCPZ, ensure that the input signal is within the recommended frequency range, use a suitable reference clock, and optimize the loop filter components. Additionally, minimize the noise and interference in the system, and use a good quality power supply.
  • The maximum power consumption of the ADF4196BCPZ is typically around 350mW, but this can vary depending on the specific application and operating conditions. It's recommended to check the datasheet and consult with Analog Devices Inc for specific power consumption requirements.
  • The ADF4196BCPZ is rated for operation up to 125°C, but it's recommended to derate the device for high-temperature operation. Consult with Analog Devices Inc for specific guidance on using the device in high-temperature environments.
  • To troubleshoot issues with the ADF4196BCPZ, start by checking the power supply and reference clock signals. Verify that the input signal is within the recommended frequency range and that the loop filter components are correctly configured. Use a spectrum analyzer to check for spurious signals and consult with Analog Devices Inc for further guidance.
