ADF4208BRUZ-R7 - Analog Devices

Description: Dual, Integer-N 1.1 GHz / 2.0 GHz PLL

Download ADF4208BRUZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

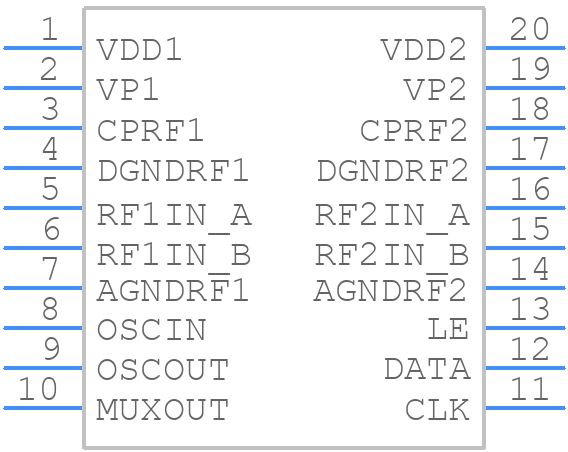

ADF4208BRUZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4208BRUZ-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-20 (TSSOP)
click to zoom
3D Models
ADF4208BRUZ-R7 - Analog Devices - 3D model - Small Outline Packages - RU-20 (TSSOP)
click to zoom

ADF4208BRUZ-R7 Details

  • Manufacturer Part Number:

    ADF4208BRUZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RU-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    DUAL MODULUS PRESCALER (RF): 32/33, 64/65

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

ADF4208BRUZ-R7 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ADF4208BRUZ-R7 can be found in the ADI's application note AN-1369, which provides guidelines for PCB design, component placement, and routing to ensure optimal performance and minimize noise.
  • The ADF4208BRUZ-R7 can be programmed using a serial interface, such as SPI or I2C. The programming sequence and register maps are described in the datasheet. Additionally, ADI provides a software development kit (SDK) and evaluation boards to simplify the programming process.
  • The ADF4208BRUZ-R7 is a fractional-N PLL synthesizer that can generate frequencies up to 18 GHz. However, the maximum frequency range depends on the specific configuration and application. It's recommended to consult the datasheet and application notes for more information.
  • To ensure optimal phase noise performance with the ADF4208BRUZ-R7, it's essential to follow proper PCB design and layout guidelines, use a high-quality voltage regulator, and optimize the loop filter design. Additionally, ADI provides application notes and simulation tools to help optimize phase noise performance.
  • Yes, the ADF4208BRUZ-R7 can be used in a multi-chip module (MCM) design. However, it's essential to ensure that the MCM design meets the recommended PCB layout and thermal management guidelines to ensure optimal performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADF4208BRUZ-R7 Overview

Use the download button to access the ADF4208BRUZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF42, or try a keyword search, such as PLL or Frequency Synthesis Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
