ADF4208BRUZ-RL - Analog Devices

Description: Dual, Integer-N 1.1 GHz / 2.0 GHz PLL

Download ADF4208BRUZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

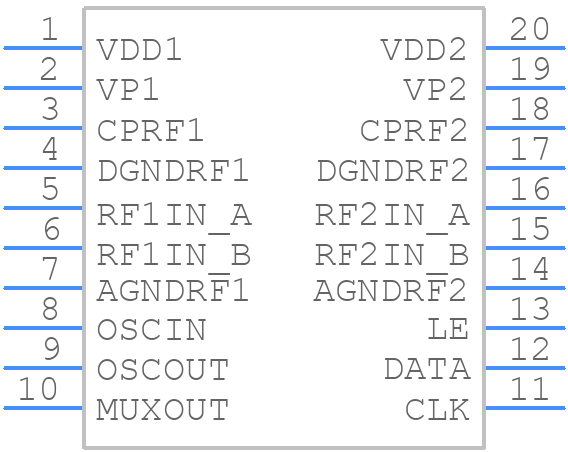

ADF4208BRUZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4208BRUZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-20 (TSSOP)
click to zoom
3D Models
ADF4208BRUZ-RL - Analog Devices - 3D model - Small Outline Packages - RU-20 (TSSOP)
click to zoom

ADF4208BRUZ-RL Details

  • Manufacturer Part Number:

    ADF4208BRUZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    LEAD FREE, TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RU-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    DUAL MODULUS PRESCALER (RF): 32/33, 64/65

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

ADF4208BRUZ-RL Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the ADF4208BRUZ-RL can be found in the 'PCB Layout Guidelines' section of the datasheet. Additionally, Analog Devices provides a reference design and layout files on their website, which can be used as a starting point for custom designs.
  • To optimize the performance of the ADF4208BRUZ-RL, it's essential to follow the recommended operating conditions, such as voltage supply, temperature range, and input signal levels. Additionally, Analog Devices provides application notes and design tools that can help optimize the performance of the device in specific applications.
  • The ADF4208BRUZ-RL is a fractional-N PLL synthesizer that can operate up to 4 GHz. However, the maximum frequency range may vary depending on the specific application and the external components used. It's recommended to consult the datasheet and application notes for more information.
  • The ADF4208BRUZ-RL can be programmed using a 3-wire serial interface. The programming sequence and register maps are described in the datasheet. Additionally, Analog Devices provides software tools and evaluation boards that can be used to program and evaluate the device.
  • The power consumption of the ADF4208BRUZ-RL depends on the operating frequency, voltage supply, and other factors. The typical power consumption is around 350 mW at 3.3 V supply voltage. However, it's recommended to consult the datasheet and application notes for more detailed information on power consumption.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADF4208BRUZ-RL Overview

Use the download button to access the ADF4208BRUZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF42, or try a keyword search, such as PLL or Frequency Synthesis Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
