ADF4212BRUZ-RL - Analog Devices

Description: Dual, Integer-N 0.5 GHz / 3.0 GHz PLL

Download ADF4212BRUZ-RL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

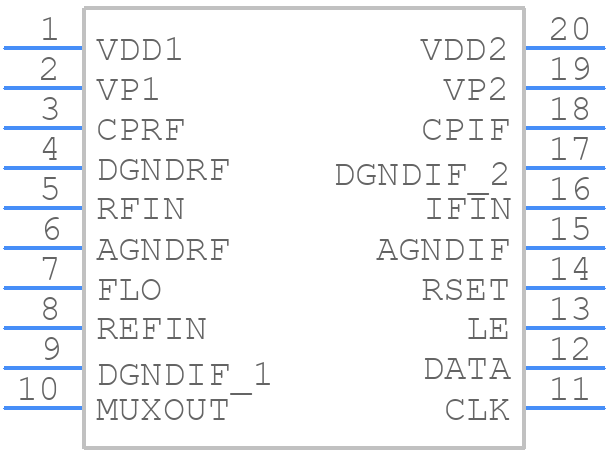

ADF4212BRUZ-RL - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADF4212BRUZ-RL - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-20 (TSSOP)
click to zoom
3D Models
ADF4212BRUZ-RL - Analog Devices - 3D model - Small Outline Packages - RU-20 (TSSOP)
click to zoom

ADF4212BRUZ-RL Details

  • Manufacturer Part Number:

    ADF4212BRUZ-RL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RU-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    4 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

ADF4212BRUZ-RL Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADF4212BRUZ-RL involves keeping the RF signal paths as short as possible, using a solid ground plane, and separating the analog and digital sections. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the RF signal, a layer for the analog power supply, a layer for the digital power supply, and a layer for the ground plane.
  • To configure the ADF4212BRUZ-RL for FM or AM, you need to set the appropriate registers and pins. For FM, set the MOD_SEL pin to logic high and configure the FM deviation using the FM_DEV register. For AM, set the MOD_SEL pin to logic low and configure the AM depth using the AM_DEPTH register. Refer to the datasheet and application notes for detailed instructions.
  • The ADF4212BRUZ-RL can handle a maximum power of +15 dBm. To prevent overheating, ensure good thermal design, such as using a heat sink, keeping the device away from other heat sources, and providing adequate airflow. Also, monitor the device's temperature using the internal temperature sensor and adjust the power levels accordingly.
  • To troubleshoot issues with the ADF4212BRUZ-RL, start by checking the power supply, clock, and reference signals. Verify that the device is properly configured and that the registers are set correctly. Use a spectrum analyzer to measure the output signal and identify any spurious emissions. Also, check for any layout or component issues that may be causing the problem.
  • Yes, the ADF4212BRUZ-RL can be used in a push-pull configuration. To configure it, connect the OUT+ and OUT- pins to the load, and set the PUSH_PULL pin to logic high. This will enable the push-pull mode, allowing the device to drive the load differentially. Refer to the datasheet and application notes for detailed instructions and layout considerations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADF4212BRUZ-RL Overview

Use the download button to access the ADF4212BRUZ-RL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADF42, or try a keyword search, such as PLL or Frequency Synthesis Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
